06 Downlights Fixed LED > The IP54 Dark Light Bathroom Downlights Die cast

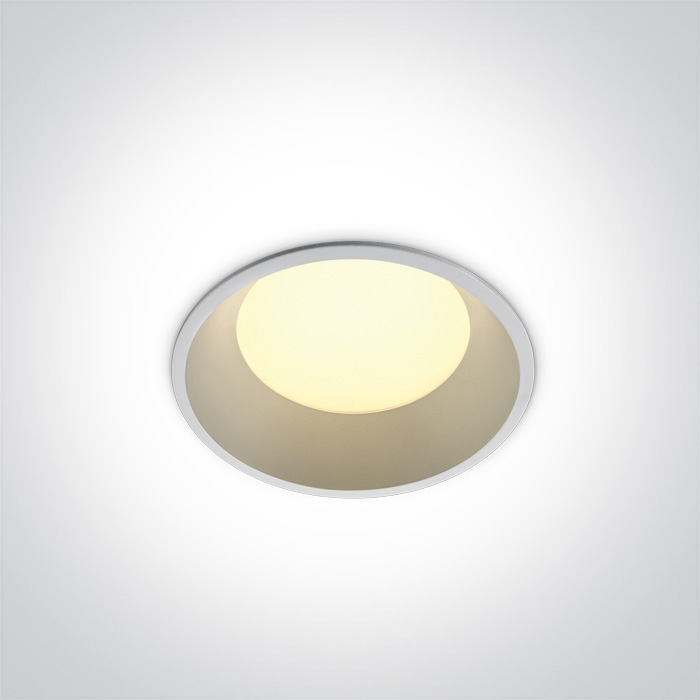

10109FD/W/C
9W Dark Light SMD LED recessed downlight ideal for bathroom installation, IP54.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
The IP54 Dark Light Bathroom Downlights Die cast
Order Code
10109FD/W/C
Colour
White
Material
Die Cast
Shape
Circular
Height
50mm
Diameter
120mm
Cutout Hole Diameter
111mm
Recessed Ceiling
Yes
Depth Required
70mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
9W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
28V
Safety Class
Power (Watts)
8,4W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6-9W
Power Factor
0,9
Constant Current
Yes
300mA
20-30V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
4000K
Lumen Output
765lm
Light Efficiency
85lm/W
CRI
80
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
13cm
Box Width
13cm
Box Height
6cm
Box Weight
0.340kg
Pcs/Carton
40
Barcode
5291889051411
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
