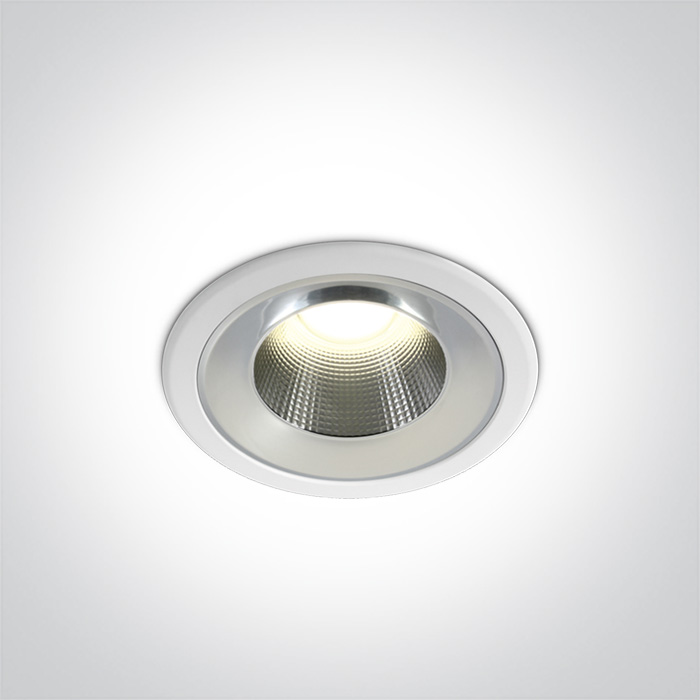

06 Downlights Fixed LED > The Dark Light Project Range
10110TD/W/C
10W LED recessed downlight, IP54. Suitable for Indoor/Outdoor
installation.
Complete with 250mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 250mA driver.
Complies with standard EN60598-1 and any other specific standards.

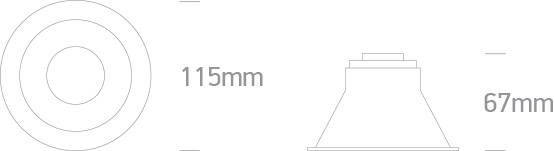

Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
The Dark Light Project Range
Order Code
10110TD/W/C
Colour
White
Material
Aluminium
Shape
Circular
Height
67mm
Diameter
115mm
Cutout Hole Diameter
95mm
Recessed Ceiling
Yes
Depth Required
110mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
250mA
Voltage
39V
Safety Class
Power (Watts)
9W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
7-9,2W
Power Factor
0,9
Constant Current
Yes
Voltage Range
30-40V
Output
250mA
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
4000K
Lumen Output
950lm
Light Efficiency
95lm/W
CRI
80
Beam Angle
60°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
14cm
Box Width
14cm
Box Height
8cm
Box Weight
0.296kg
Pcs/Carton
30
Barcode
5291889070221
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
