02 Recessed Spots Fixed LED > The Trimless 3W Range Aluminium
.jpg)
10112BTR/B/W

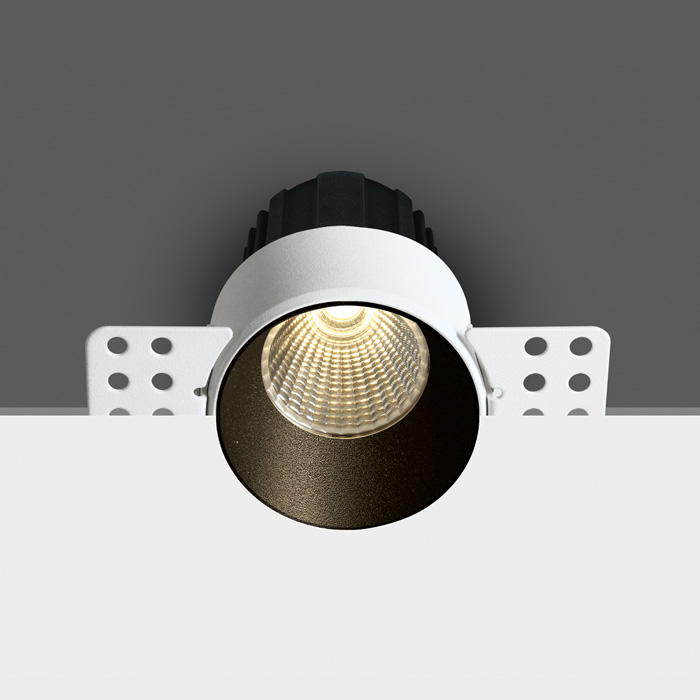

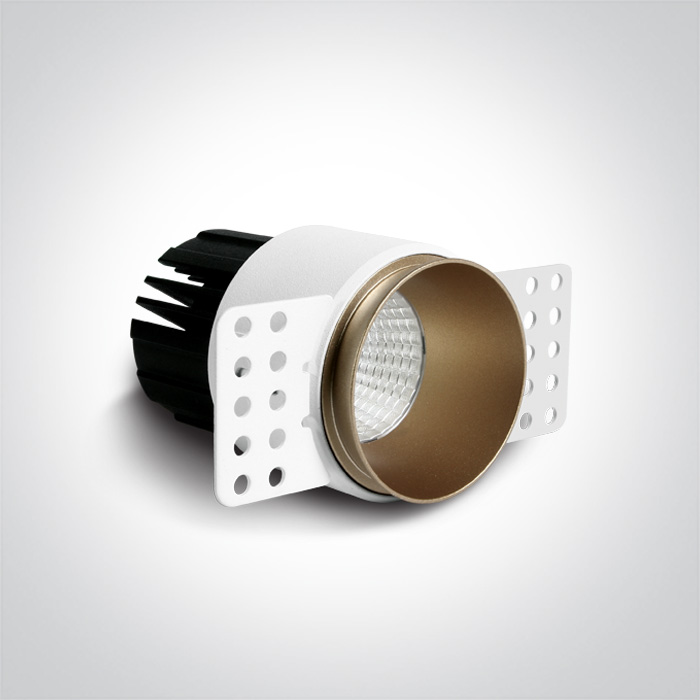

9W/12W COB LED 2-Step trimless Recessed spot, IP20, for general application.
Requires 500mA/700mA constant current driver.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Trimless 3W Range Aluminium
Order Code
10112BTR/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
92mm
Diameter
64mm
Cutout Hole Diameter
70mm
Recessed trimmless ceiling
Yes
Depth Required
110mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
500mA/700mA
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
1100lm
Light Efficiency
91,67lm/W
CRI
90
Beam Angle
40°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.362kg
Pcs/Carton
48
Barcode
5291889070061
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
