02 Recessed Spots Fixed LED > The 12W COB IP65 & IP64 Range
10112P/W/C

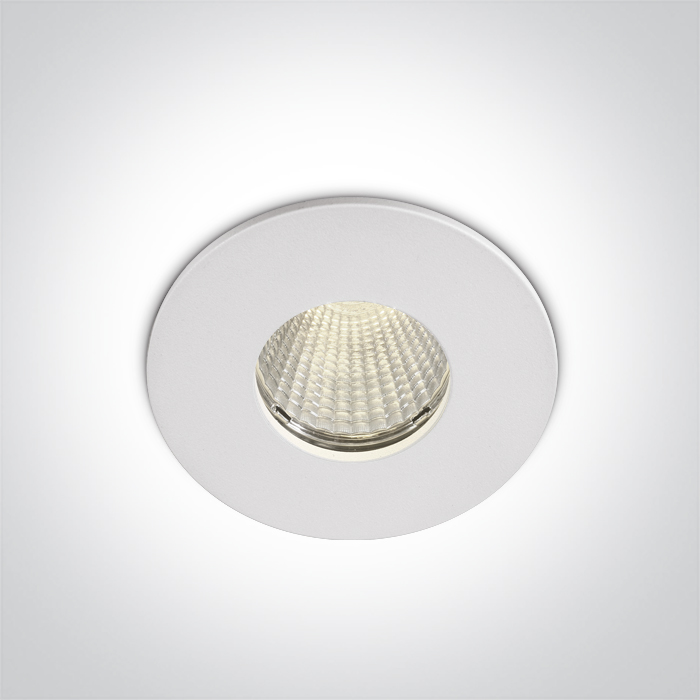

12W COB LED recessed spot, IP65, for general application.
Suitable for bathroom installation.
Requires 700mA constant current driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA constant current driver.
Complies with standard EN60598-1 and any other specific standards.

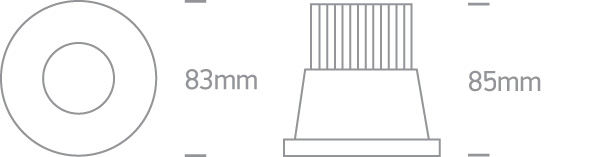

Dimensions
Downloads
.jpg){kind=small}
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The 12W COB IP65 & IP64 Range
Order Code
10112P/W/C
Colour
White
Material
Die Cast
Shape
Circular
Height
85mm
Diameter
83mm
Cutout Hole Diameter
68mm
Recessed Ceiling
Yes
Depth Required
105mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
12W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
4000K
Lumen Output
1100lm
Light Efficiency
91,67lm/W
CRI
80
Beam Angle
40°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
9cm
Box Width
9cm
Box Height
10cm
Box Weight
0.298kg
Pcs/Carton
50
Barcode
5291889045724
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
