02 Recessed Spots Fixed LED > Floating Ring Range
10112R/W/W

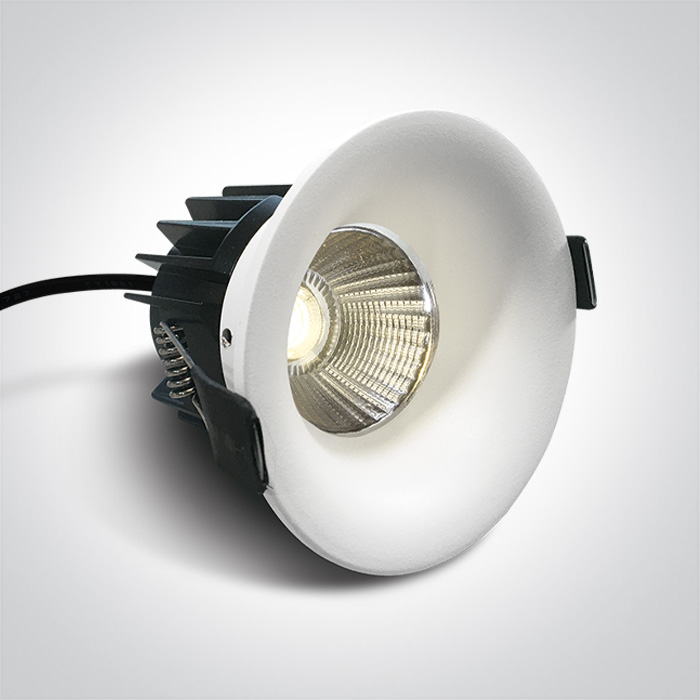

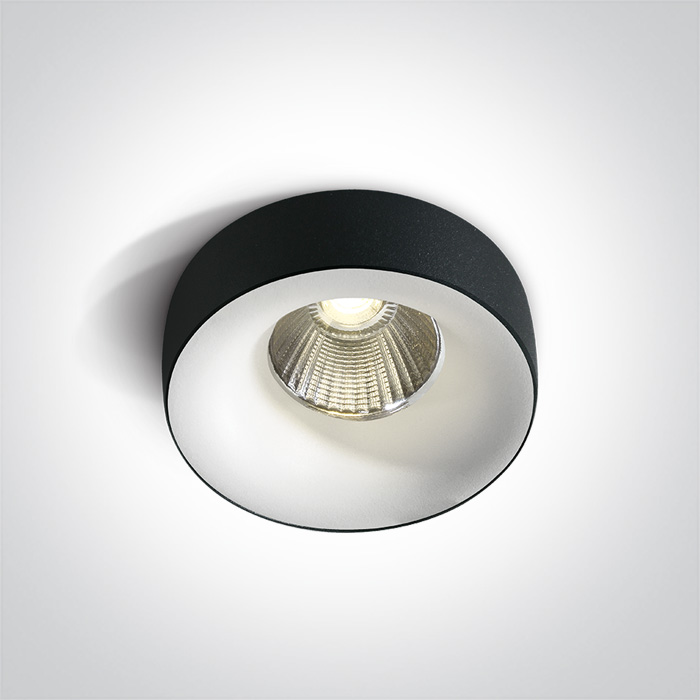

12W Dark Light COB LED recessed spot with interchargeable ring.
Ring must be ordered separately.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Ring must be ordered separately.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
Floating Ring Range
Order Code
10112R/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
97mm
Diameter
85mm
Cutout Hole Diameter
68mm
Recessed Ceiling
Yes
Depth Required
110mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
12W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
1100lm
Light Efficiency
91,67lm/W
CRI
90
Beam Angle
50°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
9cm
Box Width
9cm
Box Height
8,5cm
Box Weight
0.362kg
Pcs/Carton
50
Barcode
5291889074205
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
