02 Recessed Spots Fixed LED > The Retro Dark Light Range
10112Z/B/W

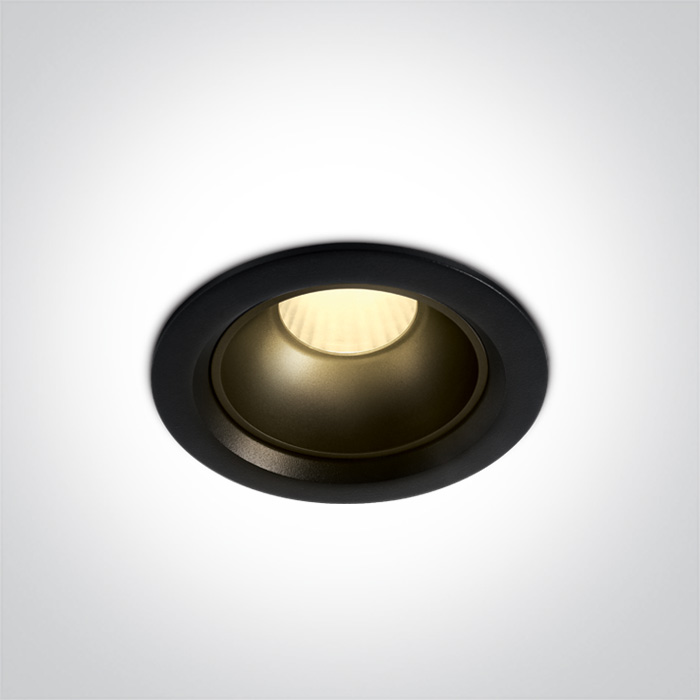

12W Recessed Dark Light LED spot IP20.

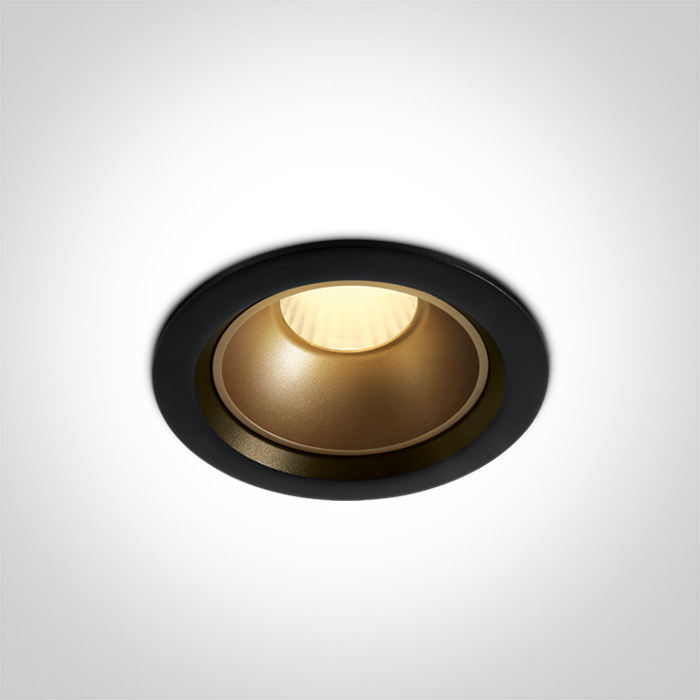

Supplied with Black & Brass reflectors.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with Black & Brass reflectors.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Retro Dark Light Range
Order Code
10112Z/B/W
Colour
Black
Material
Die Cast + Plastic
Shape
Circular
Height
68mm
Diameter
98mm
Cutout Hole Diameter
82mm
Recessed Ceiling
Yes
Depth Required
88mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
35,9V
Safety Class
Power (Watts)
10,8W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
7,5-12,6W
Power Factor
0,5
Constant Current
Yes
300mA
25-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
960lm
Light Efficiency
80lm/W
CRI
80
Beam Angle
45°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
13,5cm
Box Width
11,5cm
Box Height
8,5cm
Box Weight
0.356kg
Pcs/Carton
30
Barcode
5291889059004
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
