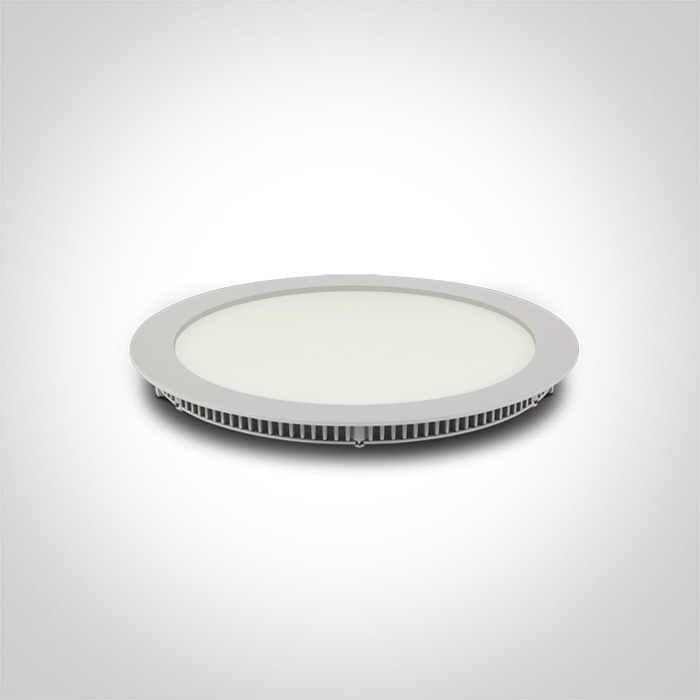

06 Downlights Fixed LED > The 18-30W Round Recessed Panels Die cast
10130FA/W/W
30W slim downlight LED, IP40, ideal for commercial
applications such as offices, galleries and showrooms.
Supplied with 700mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with 700mA non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

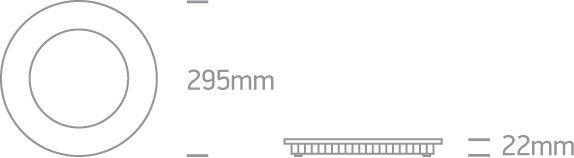

Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
The 18-30W Round Recessed Panels Die cast
Order Code
10130FA/W/W
Colour
White
Material
Die Cast
Diffuser Material
Acrylic
Shape
Circular
Height
22mm
Diameter
295mm
Cutout Hole Diameter
285mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP40
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
34,7V
Safety Class
Power (Watts)
24,3W
IP Rating
IP40
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
144
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
30W
Power Factor
0,9
Constant Current
Yes
700mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
50°C
Operating Temp
75°C
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
1800lm
Light Efficiency
60lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Length
35,5cm
Box Width
31cm
Box Height
4cm
Box Weight
0.966kg
Pcs/Carton
15
Barcode
5291889044185
HS Code
9405119090
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
30000 hours
Wee Directive
Yes
Year in which the CE mark was affixed
16
