06 Downlights Fixed LED > The 40-48W Round Recessed Panels Die Cast
10148P/W/D

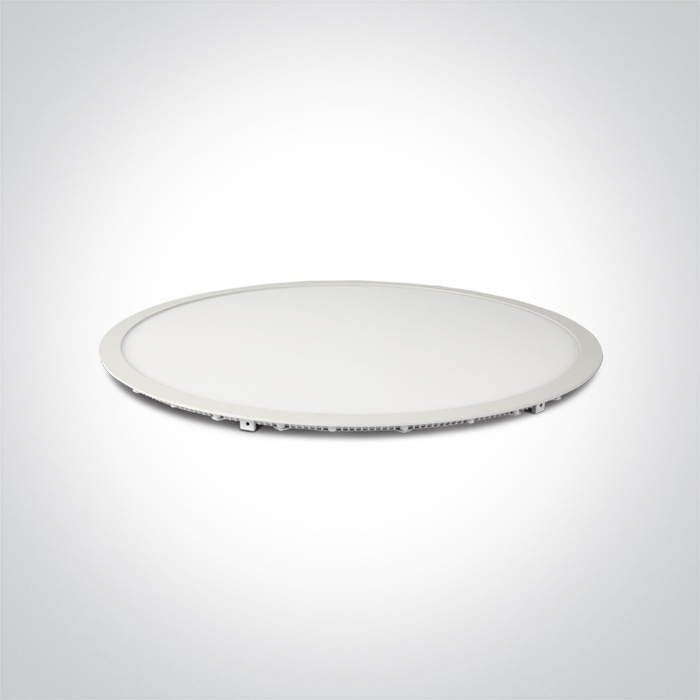

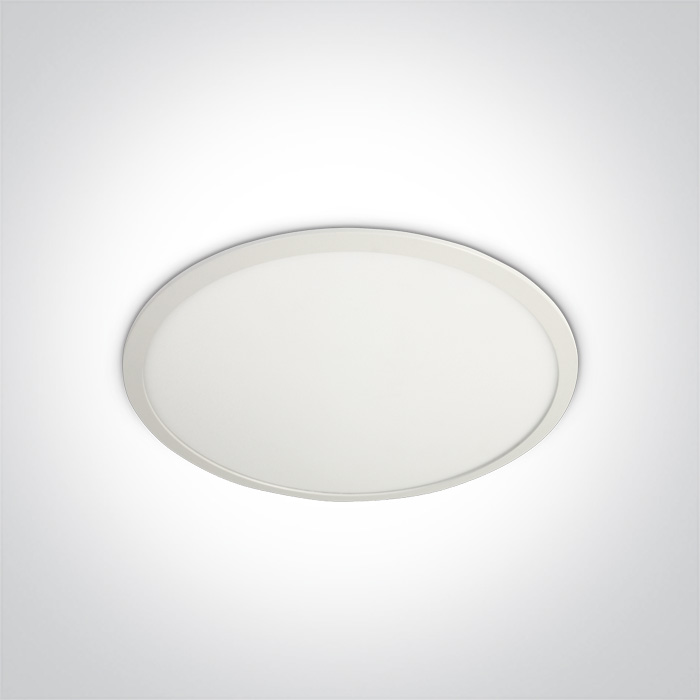

Recessed circular LED panel.
Complete with 1200mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 1200mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
The 40-48W Round Recessed Panels Die Cast
Order Code
10148P/W/D
Colour
White
Material
Die Cast
Shape
Circular
Height
14mm
Diameter
600mm
Cutout Hole Diameter
585mm
Recessed T-Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
48W
IP Rating
IP20
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
F Mark
Fitting
Input Type
Constant Current
Input Current
1200mA
Voltage
36V
Safety Class
Power (Watts)
43,2W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar

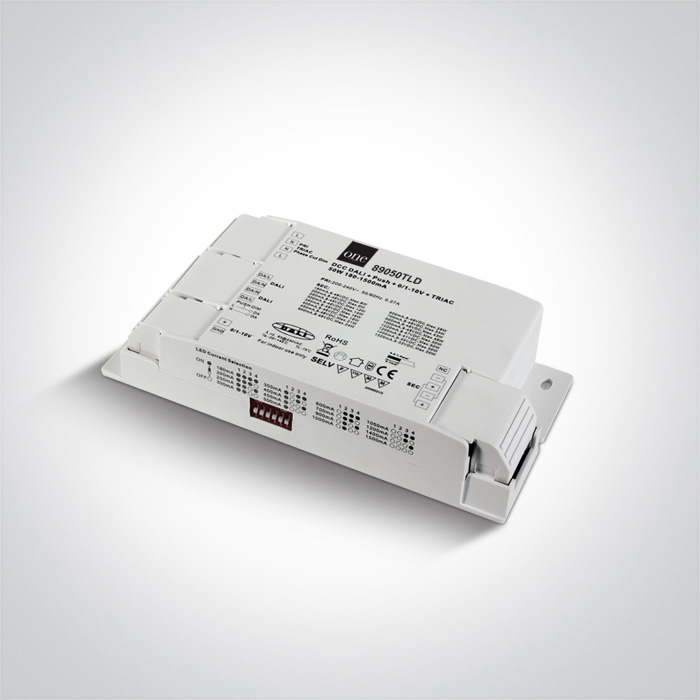

Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
43,2-50,4W
Power Factor
0,95
Constant Current
Yes
1200mA
36-42V
IP Rating
IP20
Safety Class
Dimmable
Yes
Ambient Temp
-30℃ ~ +50℃
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
6000K
Lumen Output
3200lm
Light Efficiency
66,67lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
4.450kg
Pcs/Carton
2
Barcode
5291889038351
HS Code
9405119090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
15
