04 Recessed Spots Adjustable LED > The 3W Mini Lighter Aluminium

11103K/W/W

Must be ordered separately
11103K/W/W

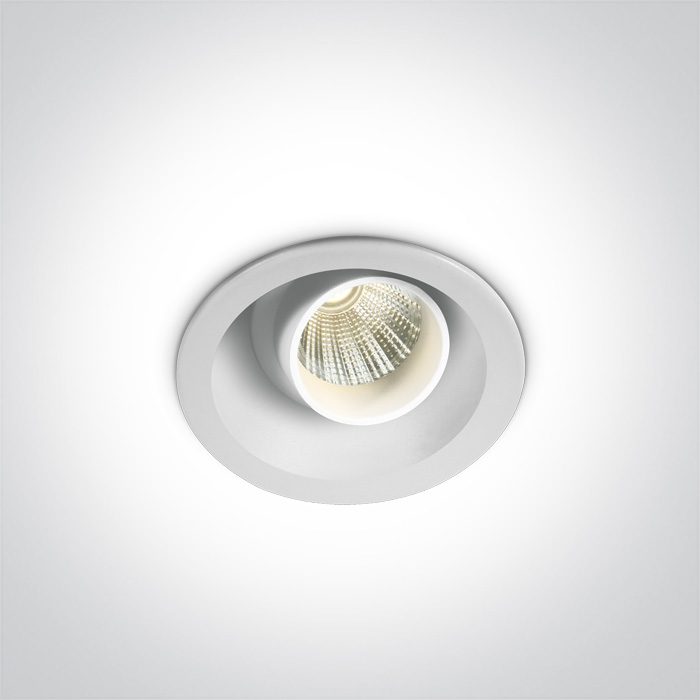

3W LED Dark Light Recessed adjustable spot, IP20.

Requires 350mA driver.

Complies with standard EN60598-1 and any other specific standards.
Indoor
Ceiling
IP
CRI
Adjustable
Dark Light
Beam Angle
Quick Fix
CE

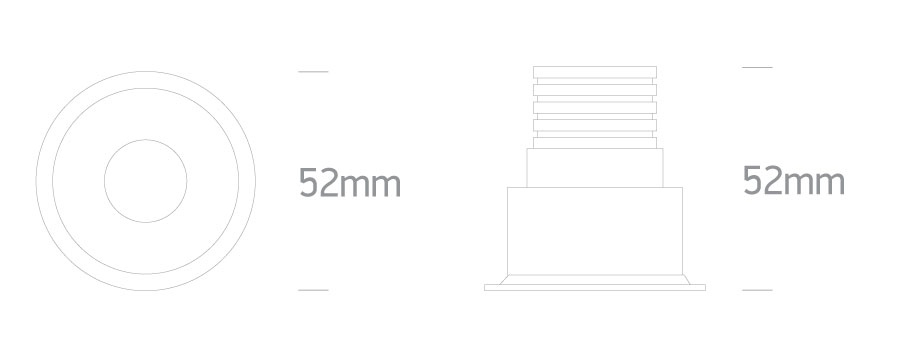

Dimensions
Downloads

Physical Specification

+
Item Group
04 Recessed Spots Adjustable LED
Family
The 3W Mini Lighter Aluminium
Order Code
11103K/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
52mm
Diameter
52mm
Cutout Hole Diameter
42mm
Recessed Ceiling
Yes
Depth Required
60mm
Indoor
Yes
Adjustable
1 Direction

Electrical Characteristics

+
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
8,4V
Safety Class
Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark

Illumination Data

+
Colour Temperature
3000K
Lumen Output
240lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
30°
Illumination Diagram
Dark Light
Yes

Packing Info

+
Box Length
5,5cm
Box Width
5,5cm
Box Height
5,6cm
Box Weight
0.095kg
Pcs/Carton
100
Barcode
5291889070047
HS Code
9405413990

Energy Label

+

Certification & Warranty

+
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
