04 Recessed Spots Adjustable LED > Moving Inner Cylinder Range
11103M/W/W

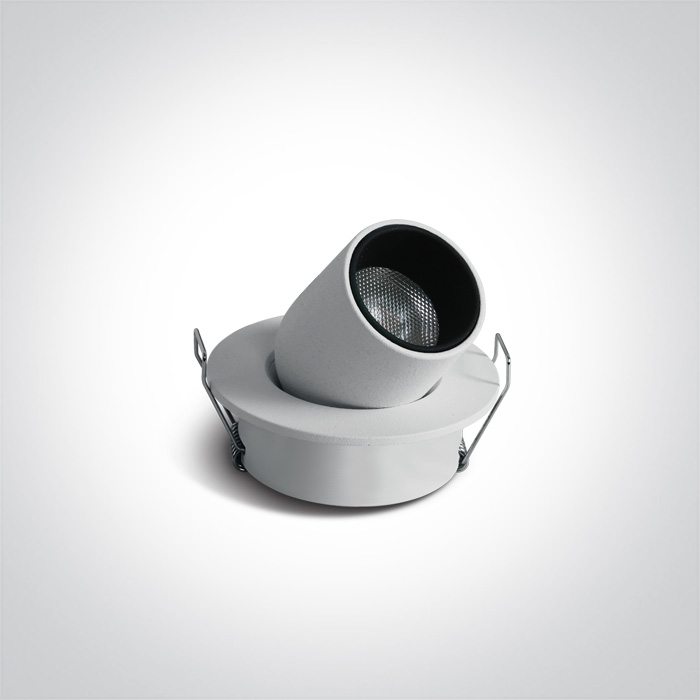

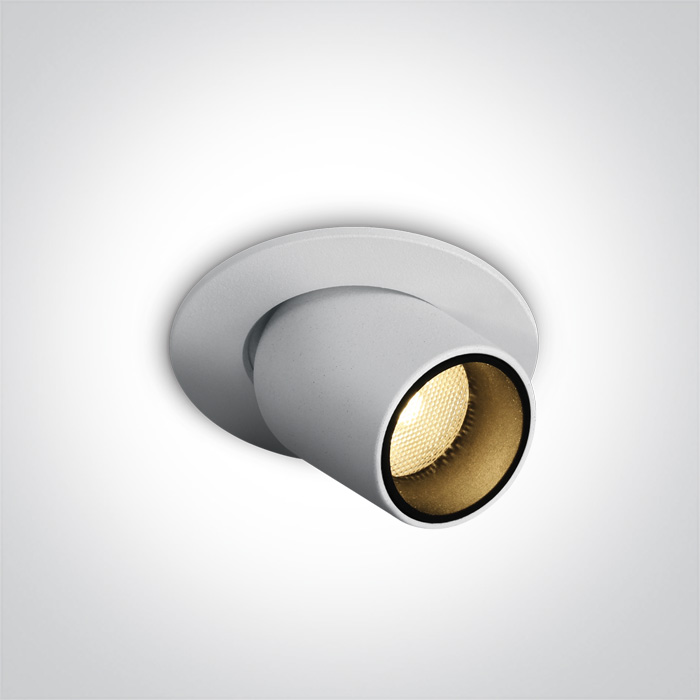

3W LED Recessed Moving Inner Cylinder Range adjustable LED Spot, IP20.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
Moving Inner Cylinder Range
Order Code
11103M/W/W
Colour
White
Material
Aluminium
Shape
Circular
Cutout Hole Diameter
44mm
Recessed Ceiling
Yes
Depth Required
35mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Safety Class
Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Citizen
LED Number
1
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
280lm
Light Efficiency
93,33lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
6,5cm
Box Width
6,5cm
Box Height
6,5cm
Box Weight
0.081kg
Pcs/Carton
100
Barcode
5291889055242
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
