04 Recessed Spots Adjustable LED > The Interchangable Rings Range Aluminium
11104K/W/W
4W COB LED adjustable recessed spot with interchargeable rings.
Ring must be ordered separately.
Requires 350/500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Ring must be ordered separately.
Requires 350/500mA driver.
Complies with standard EN60598-1 and any other specific standards.

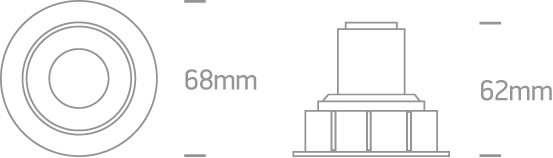

Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The Interchangable Rings Range Aluminium
Order Code
11104K/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
62mm
Diameter
68mm
Cutout Hole Diameter
60mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA/500mA
Safety Class
Power (Watts)
3/5W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
LED Number
1
Cable Length
40cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
400lm@5W
Light Efficiency
80lm/W
CRI
80
Beam Angle
35°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
8,5cm
Box Width
8cm
Box Height
8cm
Box Weight
0.176kg
Pcs/Carton
50
Barcode
5291889054092
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
