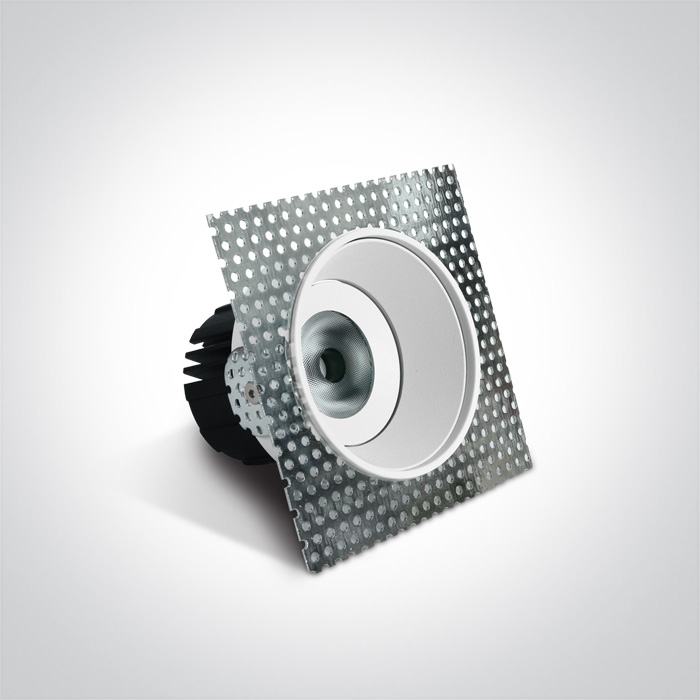

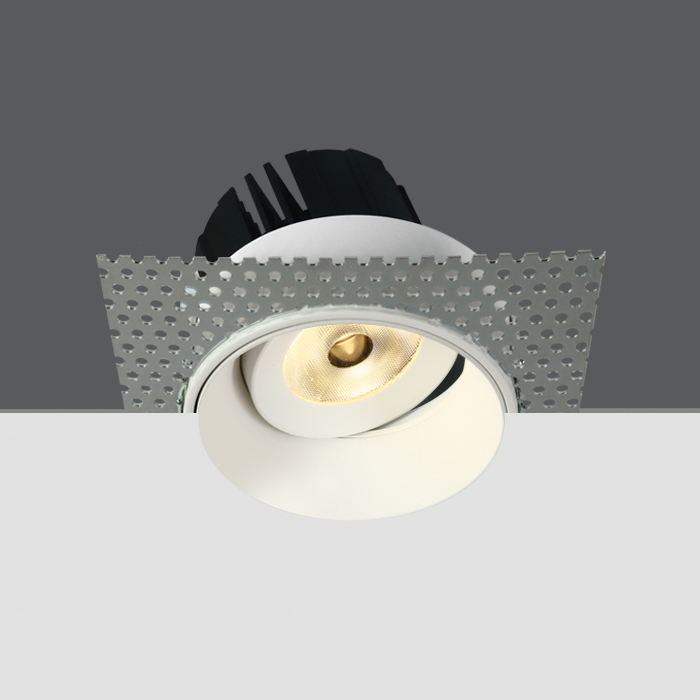

04 Recessed Spots Adjustable LED > The Trimless COB Spot
11107BT/W/W
6,5W COB LED recessed trimless adjustable spot, suitable for indoor/outdoor applications, IP54.
Requires 700mA constant current LED driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA constant current LED driver.
Complies with standard EN60598-1 and any other specific standards.

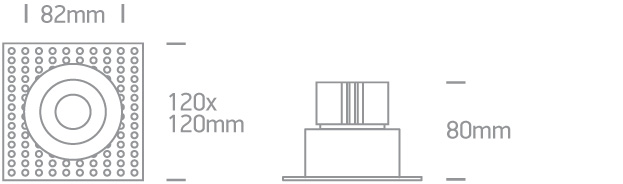

Dimensions
Downloads
.jpg){kind=small}
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The Trimless COB Spot
Order Code
11107BT/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
120mm
Width
120mm
Height
80mm
Cutout Hole Diameter
96mm
Recessed trimmless ceiling
Yes
Depth Required
105mm
Indoor
Yes
Outdoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
9,3V
Safety Class
Power (Watts)
6,5W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
500lm
Light Efficiency
76lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
13cm
Box Width
13cm
Box Height
8cm
Box Weight
0.533kg
Pcs/Carton
30
Barcode
5291889046998
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Average Lifetime
40000hours
Wee Directive
Yes
Year in which the CE mark was affixed
16
