04 Recessed Spots Adjustable LED > The Mirror Adjustable Boxes
11107T/W/W

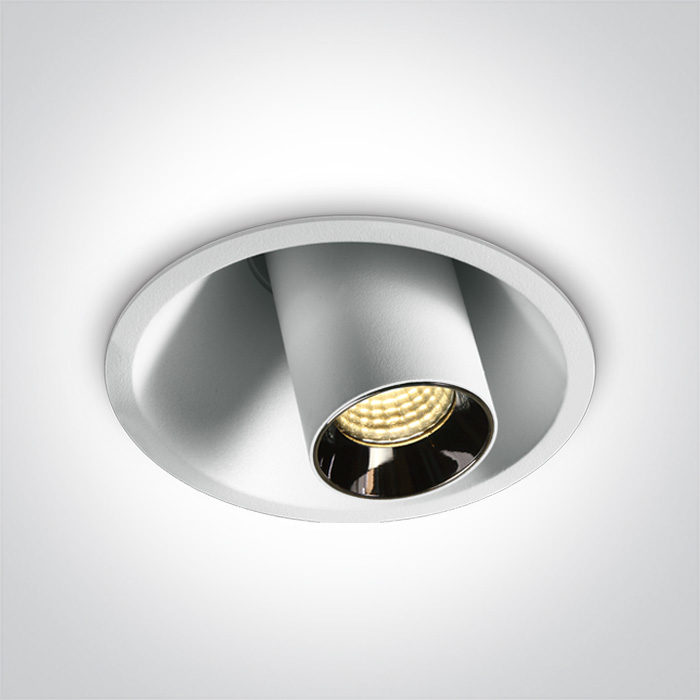

7W Adjustable Dark light recessed spot, IP20.
Complete with 160mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 160mA driver.
Complies with standard EN60598-1 and any other specific standards.

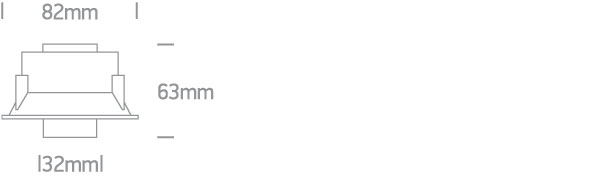

Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The Mirror Adjustable Boxes
Order Code
11107T/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
63mm
Diameter
82mm
Cutout Hole Diameter
74mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
7W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
160mA
Voltage
40V
Safety Class
Power (Watts)
7W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Osram
LED Number
1
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4-6,72W
Power Factor
0,5
Constant Current
Yes
Voltage Range
25-42V
Output
160mA
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
-20°C…+50°C
Operating Temp
75°C
Illumination Data
Colour Temperature
3000K
Lumen Output
560lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.280kg
Pcs/Carton
30
Barcode
5291889075356
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
