04 Recessed Spots Adjustable LED > The IP65 COB Dark Light Range
11112P/W/W

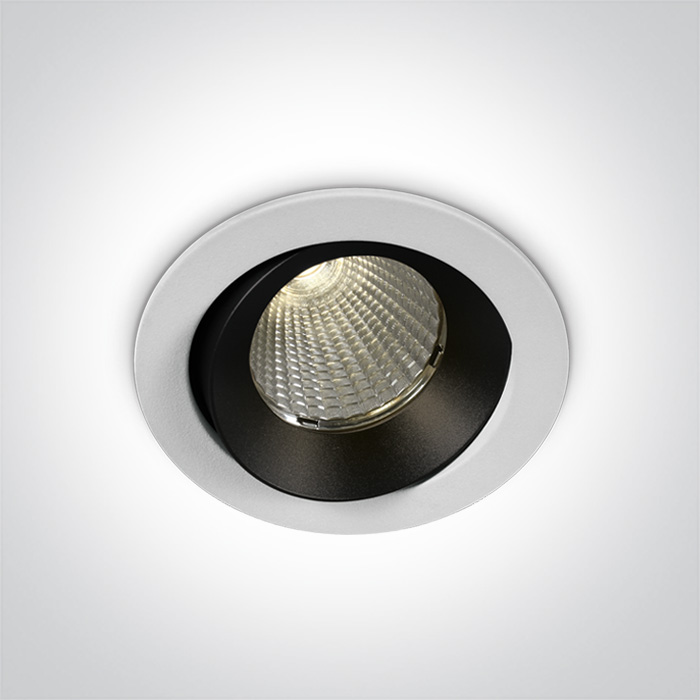

12W IP65 Dark light COB LED Recessed Adjustable Spot.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards

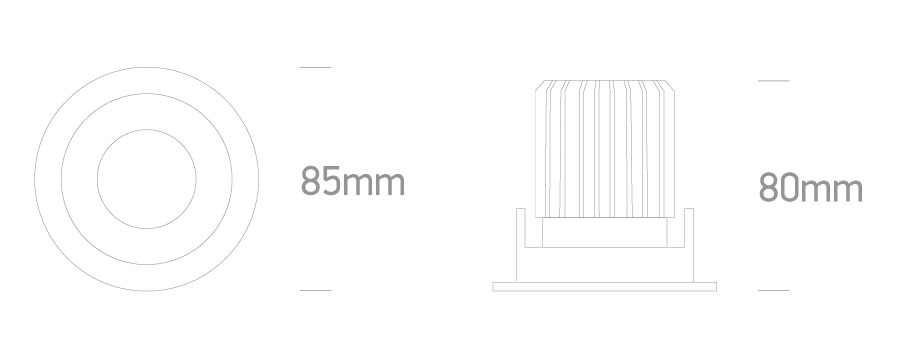

Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The IP65 COB Dark Light Range
Order Code
11112P/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
80mm
Diameter
85mm
Cutout Hole Diameter
72mm
Recessed Ceiling
Yes
Depth Required
100mm
Indoor
Yes
Outdoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
18,5V
Safety Class
Power (Watts)
12W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
1100lm
Light Efficiency
91,67lm/W
CRI
90
Beam Angle
40°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
10cm
Box Width
9cm
Box Height
10,5cm
Box Weight
0.300kg
Pcs/Carton
48
Barcode
5291889070092
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
