07 Downlights Adjustable LED > The Pop Up Range
.jpg)
11115G/W/W

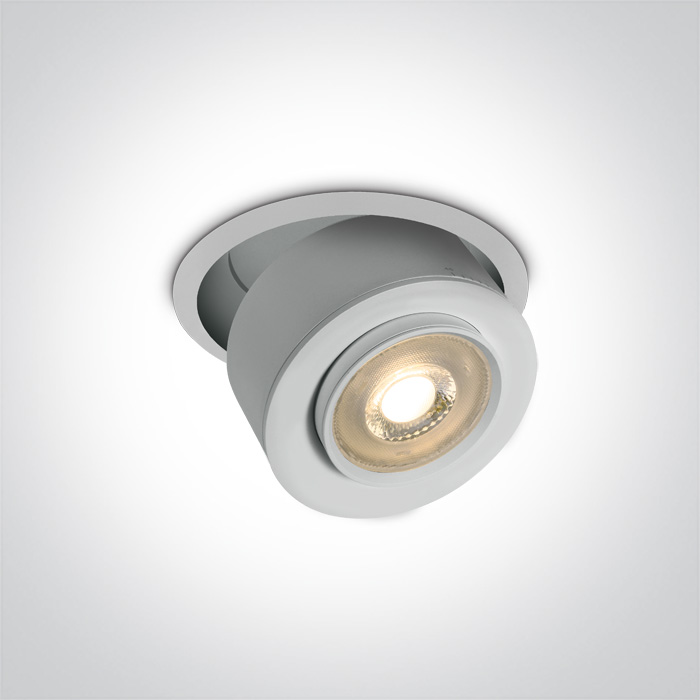

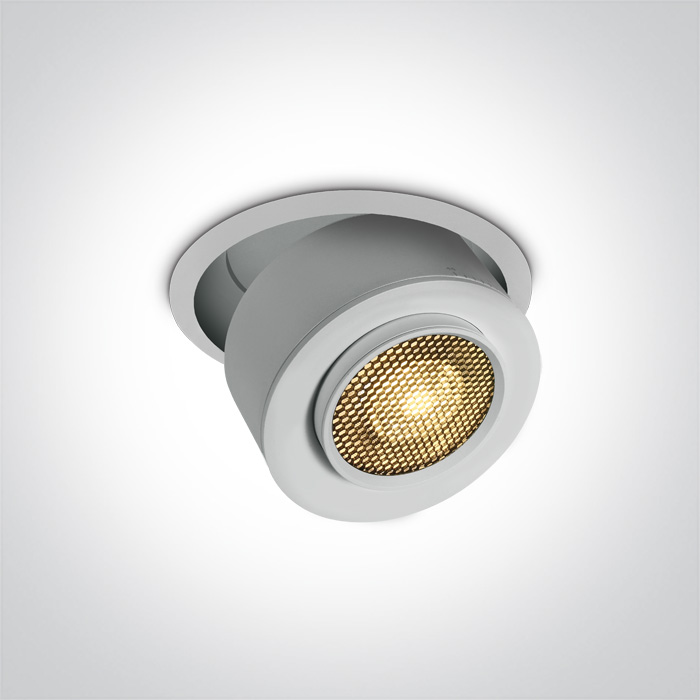

15W COB LED zoomable 15°-45° adjustable downlight with removable honeycomb.
Supplied with 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
07 Downlights Adjustable LED
Family
The Pop Up Range
Order Code
11115G/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
47mm
Diameter
105mm
Cutout Hole Diameter
98mm
Recessed Ceiling
Yes
Depth Required
70mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
41V
Safety Class
Power (Watts)
14,35W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
9,45-14,7W
Power Factor
0,92
Constant Current
Yes
350mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
0
Operating Temp
0
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
1500lm
Light Efficiency
100lm/W
CRI
90
Beam Angle
15°-45°
Illumination Diagram
Packing Info
Box Weight
0.540kg
Pcs/Carton
27
Barcode
5291889076469
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
