13 Wall & Ceiling LED > Dark Light Cylinders Tubes
12108DB/B/W
8W COB LED Cylinder with SMD backlit LED with exchangeable reflectors.
Reflector must be order separately.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Reflector must be order separately.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

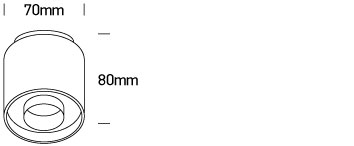

Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
Dark Light Cylinders Tubes
Order Code
12108DB/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
80mm
Diameter
70mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
8,75V
Power (Watts)
6,125W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3,5-6,3W
Power Factor
0,9
Constant Current
Yes
700mA
5-9V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
320lm + 100lm
Light Efficiency
52,5lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
7,5cm
Box Width
7,5cm
Box Height
9cm
Box Weight
0.260kg
Pcs/Carton
50
Barcode
5291889070764
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
21
