13 Wall & Ceiling LED > LED Decorative Cylinders

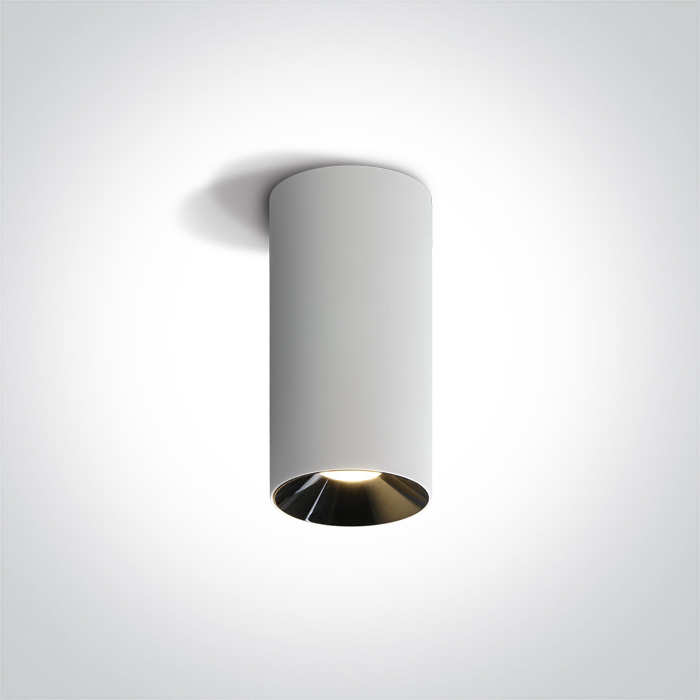

12115D/W/W
15W COB LED Cylinder, ideal for residential
and commercial illumination.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
LED Decorative Cylinders
Order Code
12115D/W/W
Colour
White
Material
Aluminium + Plastic
Shape
Circular
Height
155mm
Diameter
72mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
40V
Power (Watts)
14W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Sanan
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
2,6-5,2W
Power Factor
0,9
Constant Current
Yes
350mA
30-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
1200lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
45°
Illumination Diagram
Packing Info
Box Length
8cm
Box Width
8cm
Box Height
16cm
Box Weight
0.520kg
Pcs/Carton
24
Barcode
5291889058731
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
