13 Wall & Ceiling LED > Surface Shop Square Boxes Aluminium
12207B/W/W

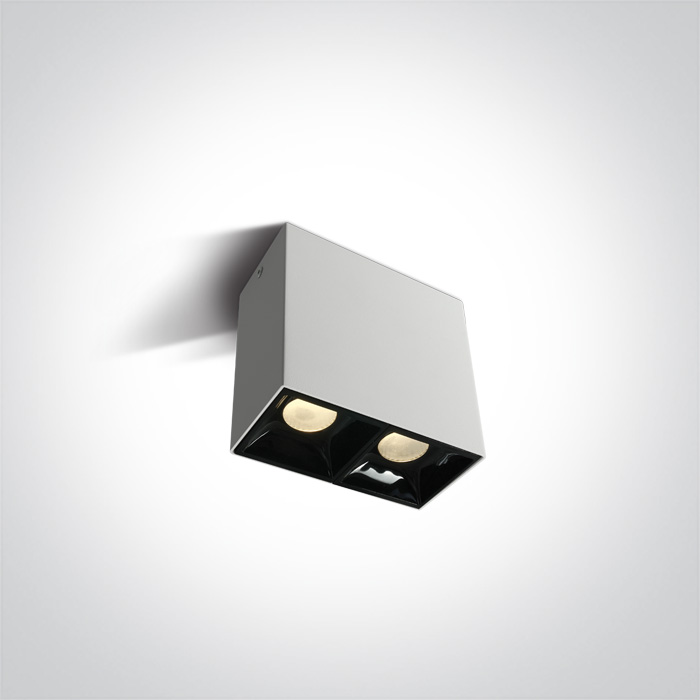

2x7W COB LED downlight, ideal for residential
and commercial illumination.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
Surface Shop Square Boxes Aluminium
Order Code
12207B/W/W
Colour
White
Material
Aluminium
Shape
Rectangular
Length
105mm
Width
54mm
Height
100mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
2x7W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
35,6V
Power (Watts)
12,5W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Citizen
LED Number
2
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
7,5-12,6W
Power Factor
0,95
Constant Current
Yes
350mA
23-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
2X550lm
Light Efficiency
78,57lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Packing Info
Box Length
13cm
Box Width
8cm
Box Height
12,5cm
Box Weight
0.729kg
Pcs/Carton
24
Barcode
5291889058335
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
