38152R/B/W

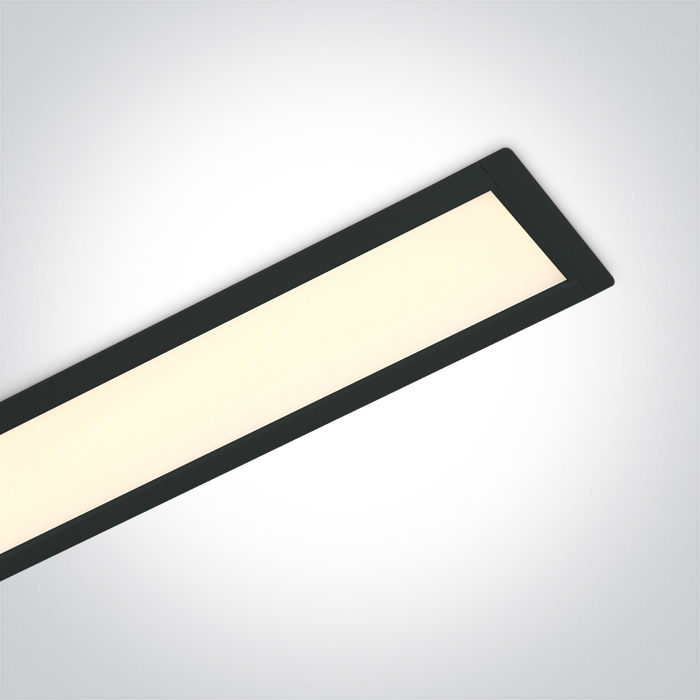

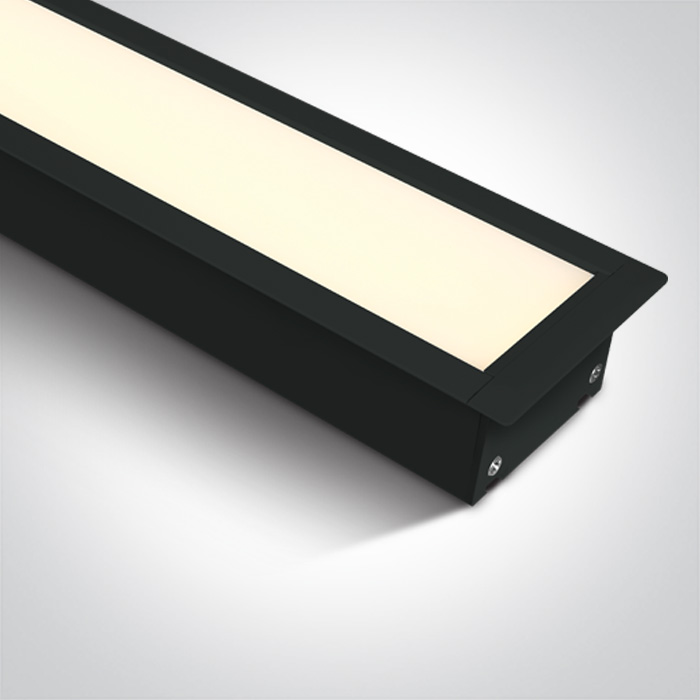

40W Recessed linear with diffuser, ideal for offices.
Complete with 1000mA driver, 6pcs fixing clips, 4pcs connectors & 2pcs end cups.
Can be connected in line.
Complies with standard EN60598-1 and any other specific standards.
Complete with 1000mA driver, 6pcs fixing clips, 4pcs connectors & 2pcs end cups.
Can be connected in line.
Complies with standard EN60598-1 and any other specific standards.

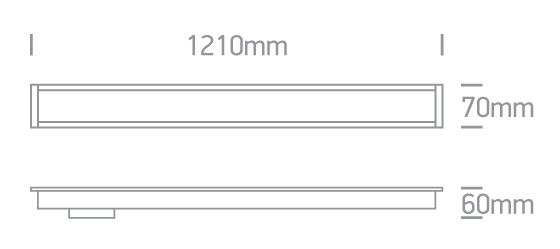

Dimensions
Downloads
Physical Specification
Item Group
11 Office & Kitchen
Family
Recessed LED Linear Profiles
Order Code
38152R/B/W
Colour
Black
Material
Aluminium
Diffuser Material
Plastic
Shape
Rectangular
Length
1210mm
Width
70mm
Height
60mm
Cutout Hole Width
60mm
Cutout Hole Height
1200mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
40W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1000mA
Voltage
36V
Power (Watts)
36W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
288
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
30-42W
Power Factor
0,95
Constant Current
Yes
1000mA
30-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Metal
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
3600lm
Light Efficiency
90lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
2.325kg
Pcs/Carton
12
Barcode
5291889075615
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
