42132/B/W

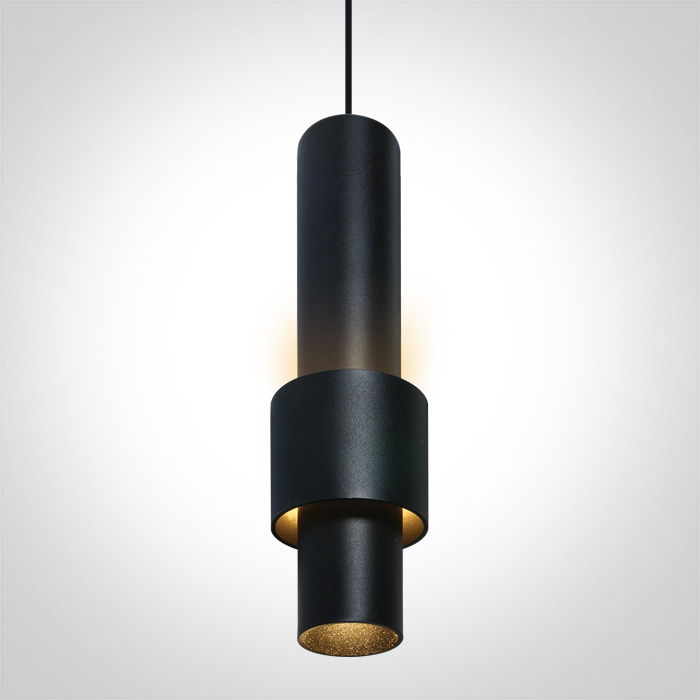

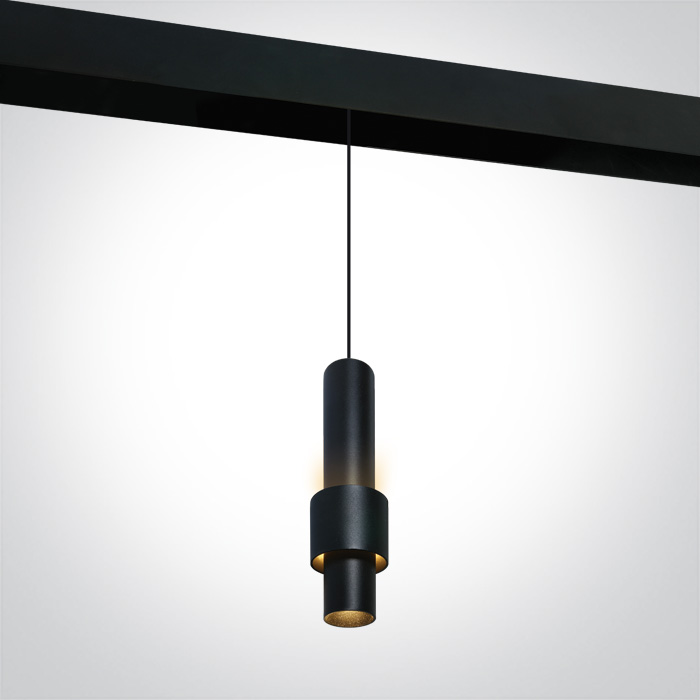

Pendant light for magnetic track.
Suitable for MINI, MIDI and MAXI magnetic tracks. Complies with standard EN60598-1 and any other specific standards.
Suitable for MINI, MIDI and MAXI magnetic tracks. Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
10 Tracks & Magnetic
Family
Magnetic Cylinder Pendants
Order Code
42132/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
300mm
Diameter
60mm
Track mounted
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
48V DC
Safety Class
Power (Watts)
7W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
LED Number
1
Illumination Data
Colour Temperature
3000K
Lumen Output
490lm
Light Efficiency
70lm/W
CRI
90
Beam Angle
10º/38º
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.623kg
Pcs/Carton
30
Barcode
5291889072270
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
