02 Recessed Spots Fixed LED > Mirror Square Boxes Die Cast
50006B/W/W

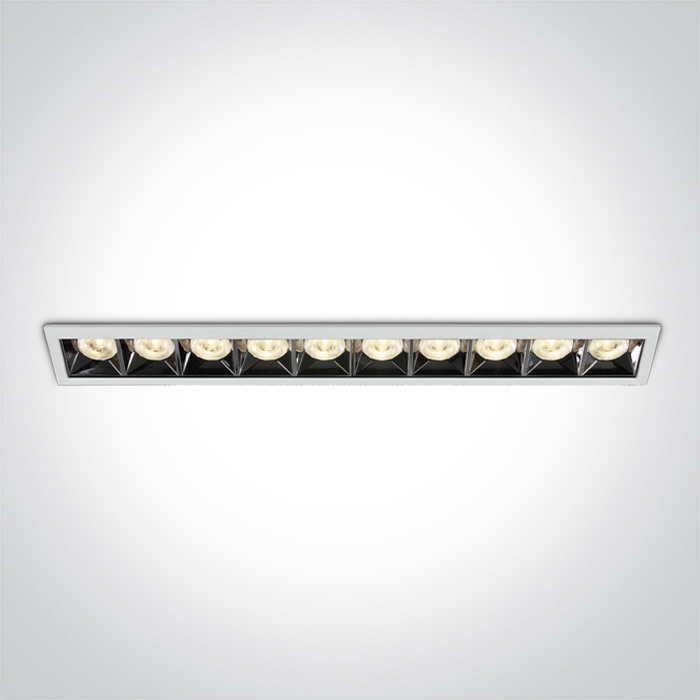

40W COB LED recessed Spot with dark chrome reflector.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

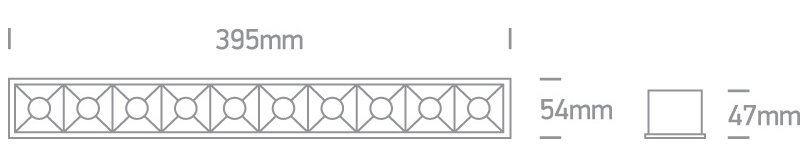

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
Mirror Square Boxes Die Cast
Order Code
50006B/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
395mm
Width
54mm
Height
47mm
Cutout Hole Width
386mm
Cutout Hole Height
45mm
Recessed Ceiling
Yes
Depth Required
70mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
40W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1000mA
Voltage
35,8V
Safety Class
Power (Watts)
35,8W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
LED Number
10
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
33-40W
Power Factor
0,9
Constant Current
Yes
1000mA
33-40v
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
3200lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Box Weight
1.093kg
Pcs/Carton
15
Barcode
5291889064053
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
