02 Recessed Spots Fixed LED > The Mirror Dark Light Range

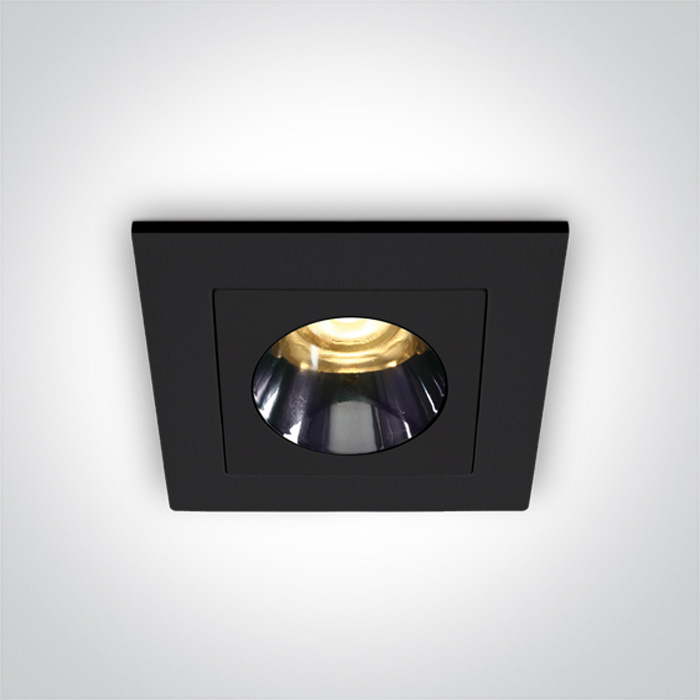

50103H/B/W
3W Dark light recessed spot, IP20.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Mirror Dark Light Range
Order Code
50103H/B/W
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
46mm
Width
46mm
Height
42mm
Cutout Hole Width
38mm
Cutout Hole Height
38mm
Recessed Ceiling
Yes
Depth Required
70mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
3,5V
Safety Class
Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3535
LED Brand
Bridgelux
LED Number
1
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
1,75-3,15W
Power Factor
0,5
Constant Current
Yes
700mA
2,5-4,5V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
-20°C…+50°C
Operating Temp
75°C
Illumination Data
Colour Temperature
3000K
Lumen Output
160lm
Light Efficiency
53,33lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.151kg
Pcs/Carton
60
Barcode
5291889074793
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
