02 Recessed Spots Fixed LED > The 8W Asymmetric Range
50108A/W/W

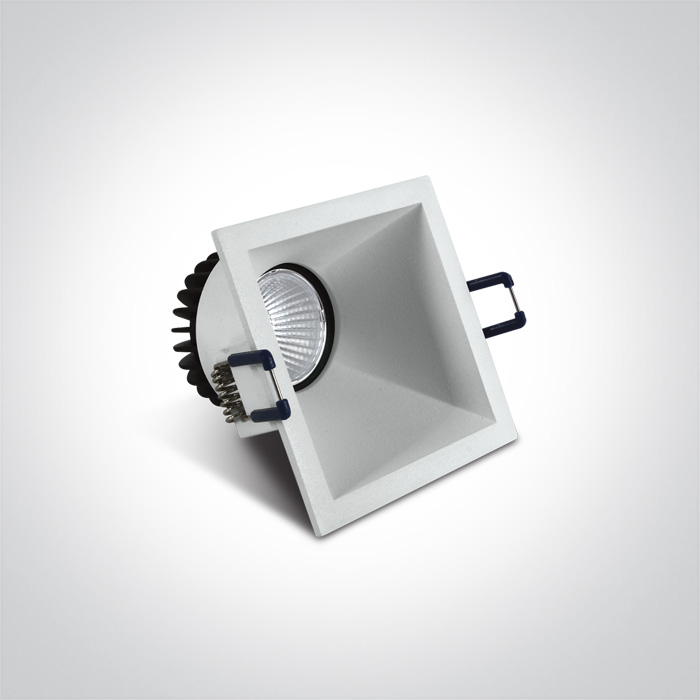

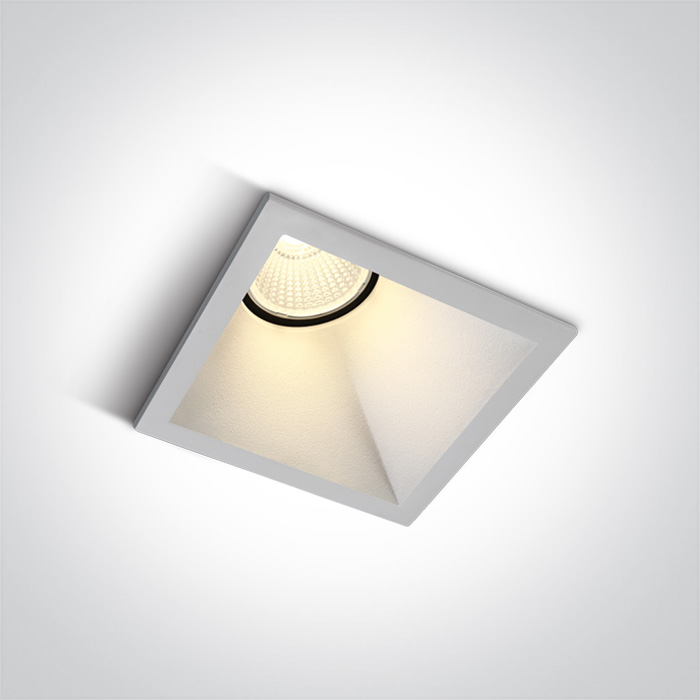

8W COB LED Recessed Assymetric Spot.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

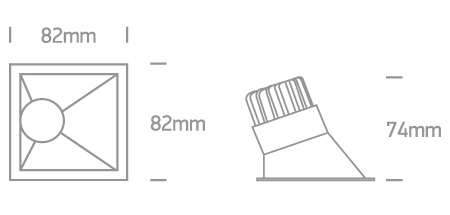

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The 8W Asymmetric Range
Order Code
50108A/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
82mm
Width
82mm
Height
74mm
Cutout Hole Width
73mm
Cutout Hole Height
73mm
Recessed Ceiling
Yes
Depth Required
85mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
20V
Safety Class
Power (Watts)
7W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
5-8,4W
Power Factor
0,9
Constant Current
Yes
350mA
14-24V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
560lm
Light Efficiency
70lm/W
CRI
80
Beam Angle
50°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.254kg
Pcs/Carton
50
Barcode
5291889066088
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
