06 Downlights Fixed LED > Panels For Germany/Austria 620x620mm

50148AU/W/W

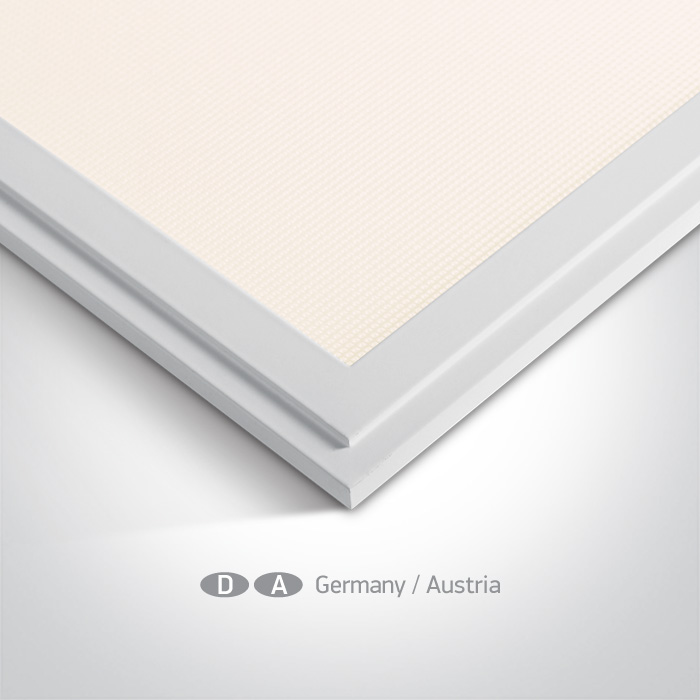

UGR19 62x62 recessed LED panel for T-rail false ceilings. Can be recessed or suspended. Uniform lighting, ideal for commercial applications.

Requires 1200mA LED driver.

Complies with standard EN60598-1 and any other specific standards.
Indoor
Ceiling
IP
CRI
CRI
Beam Angle
CE
Dimensions
Downloads

Physical Specification

+
Item Group
06 Downlights Fixed LED
Family
Panels For Germany/Austria 620x620mm
Order Code
50148AU/W/W
Colour
White
Material
Aluminium
Diffuser Material
Acrylic
Shape
Rectangular
Length
620mm
Width
620mm
Height
10mm
Recessed T-Ceiling
Yes
Depth Required
55mm
Indoor
Yes
Adjustable
No

Electrical Characteristics

+
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
1200mA
Safety Class
Power (Watts)
48W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
240

Illumination Data

+
Colour Temperature
3000K
Lumen Output
4000lm
Light Efficiency
83,33lm/W
CRI
80
Beam Angle
120°
Illumination Diagram

Packing Info

+
Box Length
72cm
Box Width
65cm
Box Height
4,5cm
Box Weight
3.850kg
Pcs/Carton
4
Barcode
5291889044628
HS Code
9405119090

Energy Label

+

Certification & Warranty

+
Warranty
2 years
Average Lifetime
30000 hours
Wee Directive
Yes
Year in which the CE mark was affixed
15
