04 Recessed Spots Adjustable LED > The Mirror Adjustable Boxes
51012H/W/W

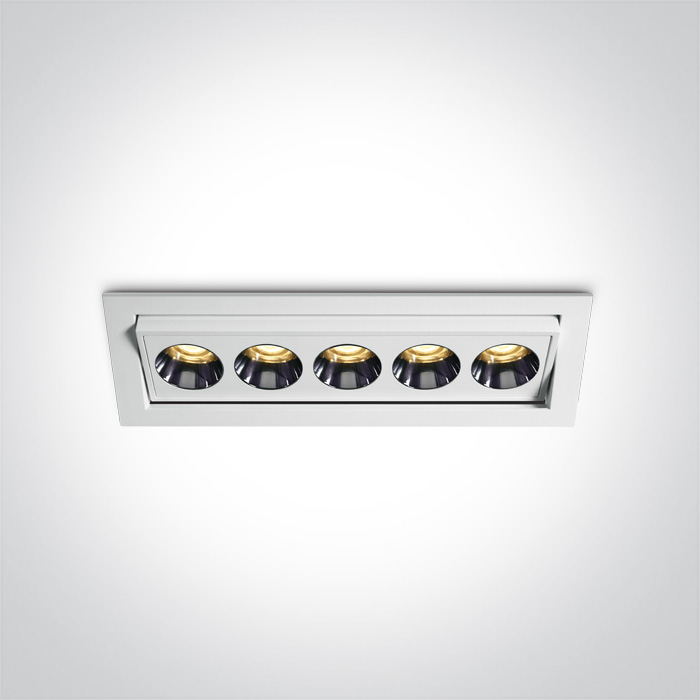

12W Adjustable Dark light recessed spot, IP20.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The Mirror Adjustable Boxes
Order Code
51012H/W/W
Colour
White
Material
Aluminium
Shape
Rectangular
Length
158mm
Width
50mm
Height
42mm
Cutout Hole Width
150mm
Cutout Hole Height
43mm
Recessed Ceiling
Yes
Depth Required
70mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
16V
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3535
LED Brand
Bridgelux
LED Number
5
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
7,7-11,9W
Power Factor
0,85
Constant Current
Yes
700mA
11-17V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
-20°C…+45°C
Operating Temp
75°C
Illumination Data
Colour Temperature
3000K
Lumen Output
840lm
Light Efficiency
70lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.365kg
Pcs/Carton
40
Barcode
5291889074922
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
