05 Downlights > Adjustable R111 Range
51110/G

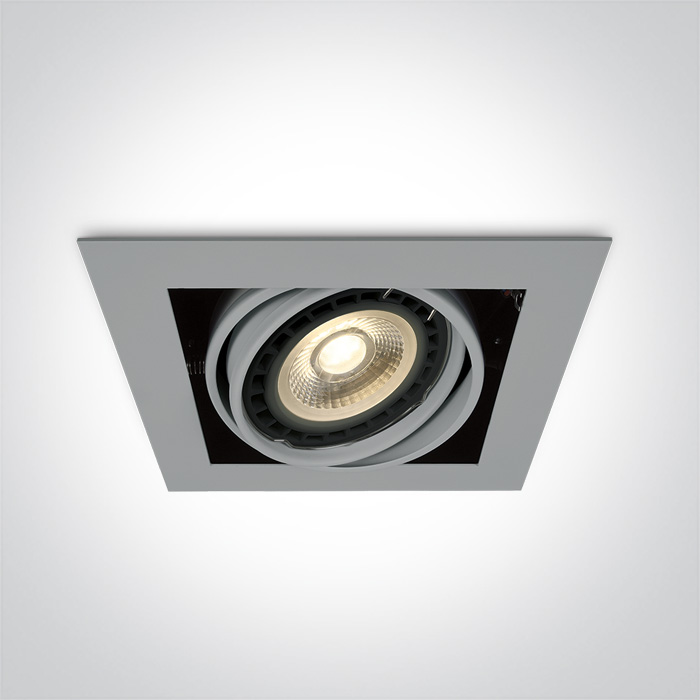

Recessed adjustable R111 downlight with G53 lampholder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.

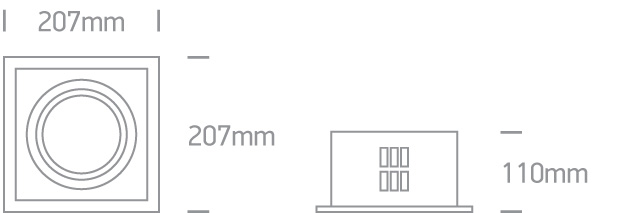

Dimensions
Downloads
Physical Specification
Item Group
05 Downlights
Family
Adjustable R111 Range
Order Code
51110/G
Colour
Grey
Material
Die Cast
Shape
Rectangular
Length
207mm
Width
207mm
Height
110mm
Cutout Hole Width
180mm
Cutout Hole Height
180mm
Recessed Ceiling
Yes
Depth Required
120mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
12V AC/DC
Safety Class
Power (Watts)
50W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
G53
Number of Lamps
1
LED Number
0
Cable Length
15cm
Illumination Data
Illumination Diagram
Packing Info
Box Length
21,5cm
Box Width
21,5cm
Box Height
10,5cm
Box Weight
1.350kg
Pcs/Carton
8
Barcode
5291889005131
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
