04 Recessed Spots Adjustable LED > The Interchangable Rings Range Aluminium
51112H/W/W

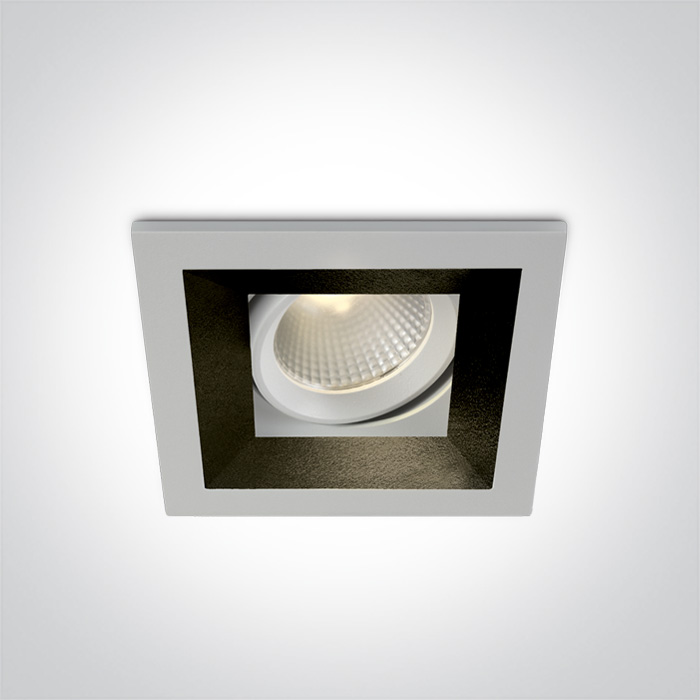

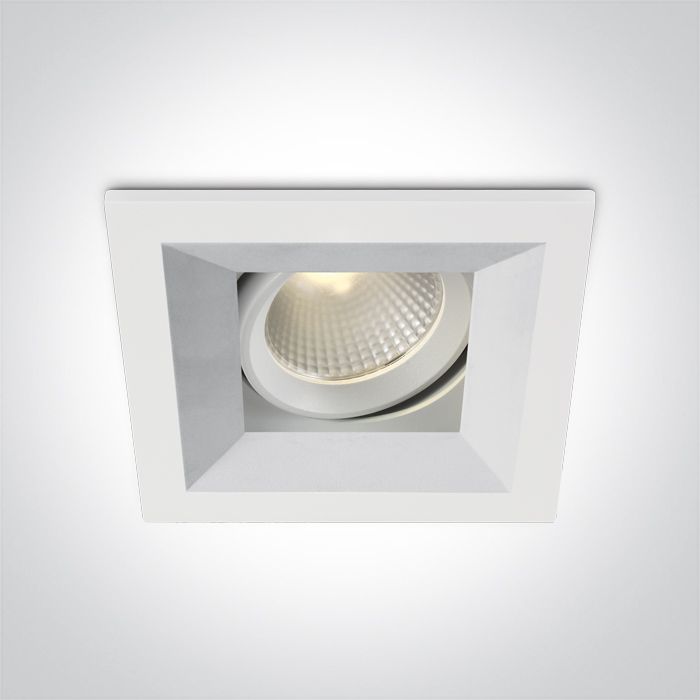

12W COB LED adjustable recessed spot with interchargeable rings.
Ring must be ordered separately.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Ring must be ordered separately.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.

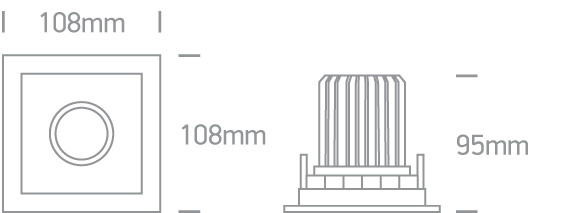

Dimensions
Downloads
Physical Specification
Item Group
04 Recessed Spots Adjustable LED
Family
The Interchangable Rings Range Aluminium
Order Code
51112H/W/W
Colour
White
Material
Aluminium
Shape
Rectangular
Length
108mm
Width
108mm
Height
95mm
Cutout Hole Width
95mm
Cutout Hole Height
95mm
Recessed Ceiling
Yes
Depth Required
120mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
36V
Safety Class
Power (Watts)
10,8V
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
LED Number
1
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
9-12W
Power Factor
0,9
Constant Current
Yes
300mA
30-42V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
940lm
Light Efficiency
80lm/W
CRI
80
Beam Angle
60°
Illumination Diagram
Packing Info
Box Length
12cm
Box Width
12cm
Box Height
12cm
Box Weight
0.480kg
Pcs/Carton
30
Barcode
5291889051343
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
