14 Plafo > The LED Plafo Range

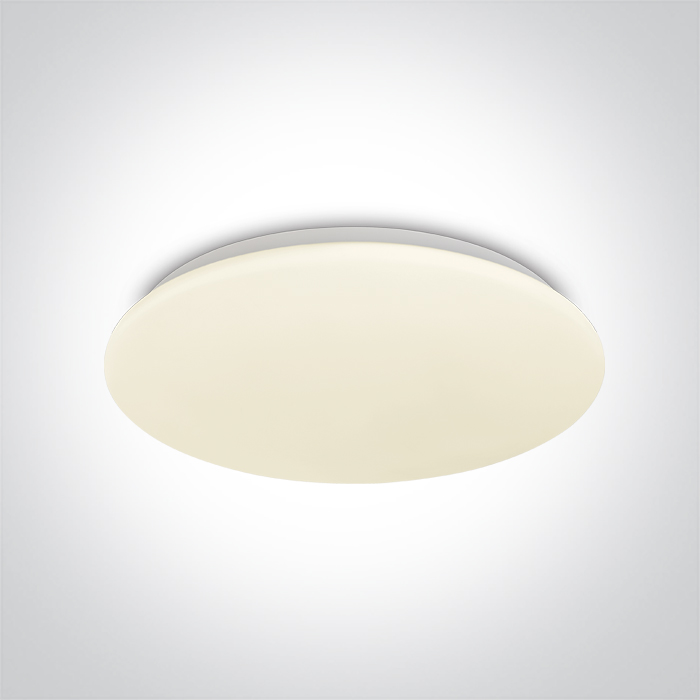

62026D/W/C
50W LED slim plafo light, IP20, suitable for residential and commercial application.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
14 Plafo
Family
The LED Plafo Range
Order Code
62026D/W/C
Colour
White
Material
Metal
Diffuser Material
Plastic
Shape
Circular
Height
75mm
Diameter
535mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
50W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
430mA
Voltage
106,9V
Power (Watts)
45,96
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
38,7-56W
Power Factor
0,9
Constant Current
Yes
Voltage Range
90-130V
Output
430mA
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
4000K
Lumen Output
3750lm
Light Efficiency
75lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
55cm
Box Width
55cm
Box Height
7,8cm
Box Weight
2.240kg
Pcs/Carton
5
Barcode
5291889069249
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
