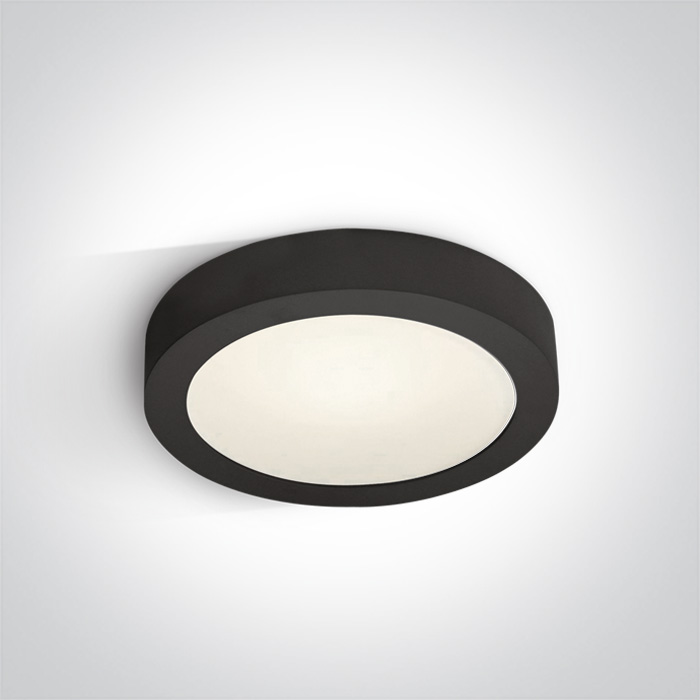

14 Plafo > The LED Panel Plafo Round
62115F/B/C
15W LED slim plafo light, IP40, suitable for residential and
commercial application.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
14 Plafo
Family
The LED Panel Plafo Round
Order Code
62115F/B/C
Colour
Black
Material
Die Cast
Shape
Circular
Height
39mm
Diameter
240mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP40
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
24V
Safety Class
Power (Watts)
12W
IP Rating
IP40
Light Source
LED built in
LED Type
SMD 2016
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6-12W
Power Factor
0,9
Constant Current
Yes
500mA
12-24V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
4000K
Lumen Output
1360lm
Light Efficiency
70lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
25,5cm
Box Width
24,5cm
Box Height
4,5cm
Box Weight
0.870kg
Pcs/Carton
10
Barcode
5291889060284
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
