06 Downlights Fixed LED > Surface/Recessed Panels Adjustable Cut Out Hole
62116FA/W/W

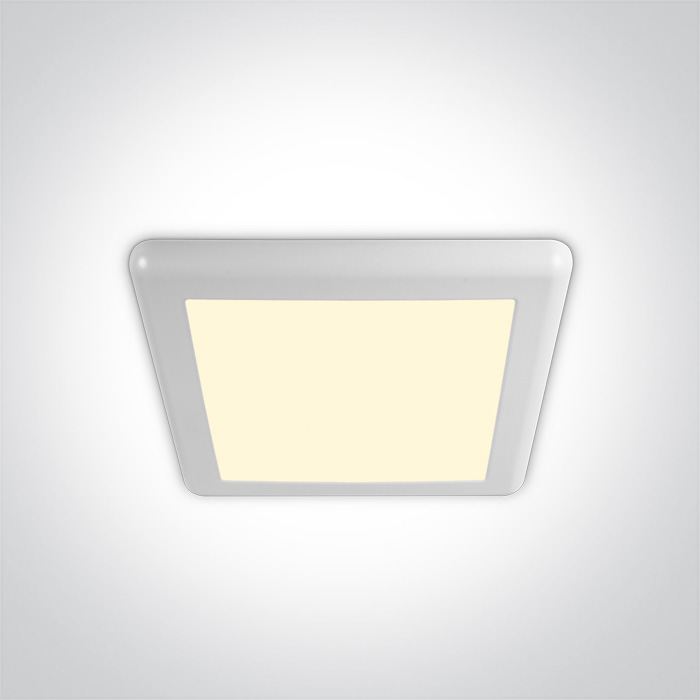

16W Downlight LED, IP20
Complete with 230mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 230mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
06 Downlights Fixed LED
Family
Surface/Recessed Panels Adjustable Cut Out Hole
Order Code
62116FA/W/W
Colour
White
Material
Plastic
Shape
Rectangular
Length
235mm
Width
235mm
Height
17mm
Cutout Hole Diameter
70mm-190mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
16W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
230mA
Voltage
68V
Power (Watts)
15,6W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
16W
Power Factor
0,5
Constant Current
Yes
Output
230mA
IP Rating
IP20
Safety Class
Dimmable
No
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
1500lm
Light Efficiency
93,75lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.665kg
Pcs/Carton
20
Barcode
5291889067788
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
