14 Plafo > Slim Line Panel Plafo
62116F/W/W

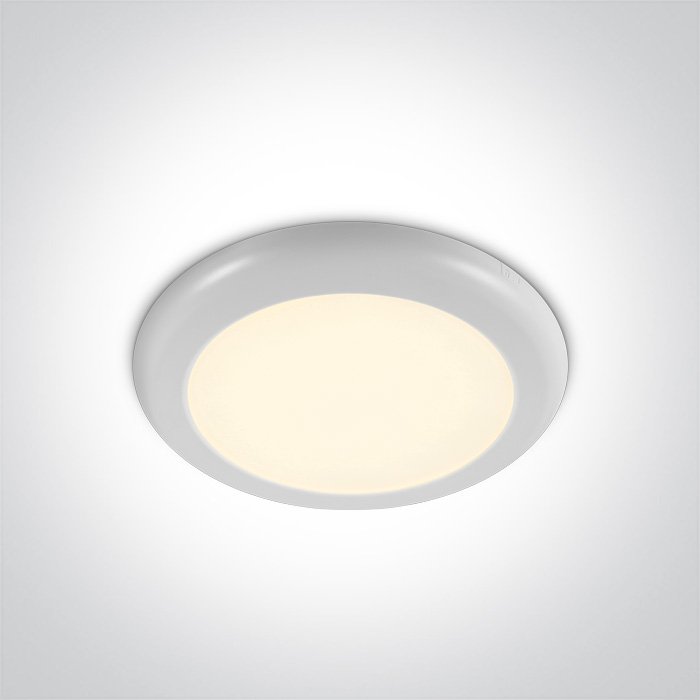

16W Downlight LED, IP20
Complete with 210mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 210mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
14 Plafo
Family
Slim Line Panel Plafo
Order Code
62116F/W/W
Colour
White
Material
Plastic
Shape
Circular
Height
17mm
Diameter
235mm
Cutout Hole Diameter
70mm-175mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
16W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
210mA
Voltage
78V
Power (Watts)
15,6W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
16W
Power Factor
0,5
Constant Current
Yes
Output
210mA
IP Rating
IP20
Safety Class
Dimmable
No
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
1500lm
Light Efficiency
93,75lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.555kg
Pcs/Carton
20
Barcode
5291889067764
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
