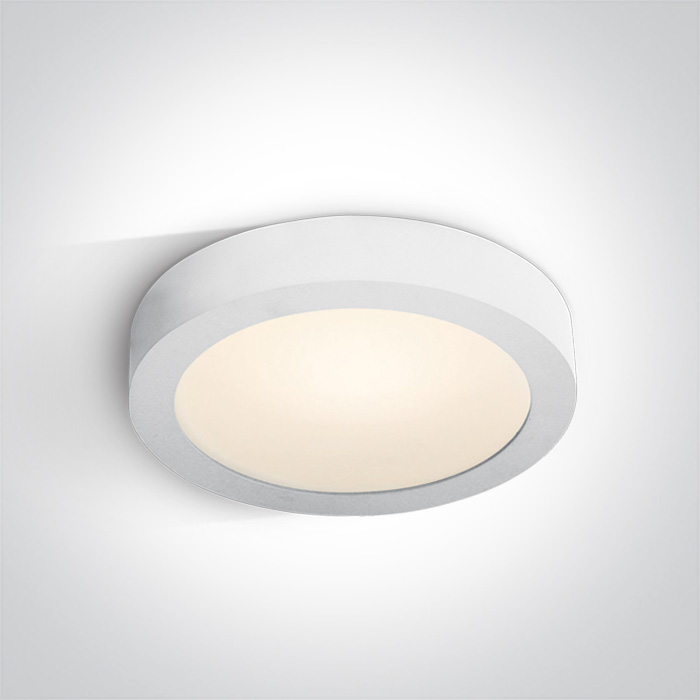

14 Plafo > The LED Panel Plafo Round
62130F/W/W
30W LED slim plafo light, IP40, suitable for residential and
commercial application.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
14 Plafo
Family
The LED Panel Plafo Round
Order Code
62130F/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
39mm
Diameter
300mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP40
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1000mA
Voltage
34,9V
Safety Class
Power (Watts)
24,43W
IP Rating
IP40
Light Source
LED built in
LED Type
SMD 2016
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
18-28W
Power Factor
0,9
Constant Current
Yes
1000mA
18-28V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
2550lm
Light Efficiency
85lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
32cm
Box Width
31,5cm
Box Height
4,5cm
Box Weight
1.230kg
Pcs/Carton
10
Barcode
5291889034414
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
