14 Plafo > LED Aluminium Panel Range Backlit
62140BF/W/C
15x120cm surface mounted backlit LED panel.
Uniform lighting, ideal for
commercial applications.
Complete with 800mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 800mA driver.
Complies with standard EN60598-1 and any other specific standards.

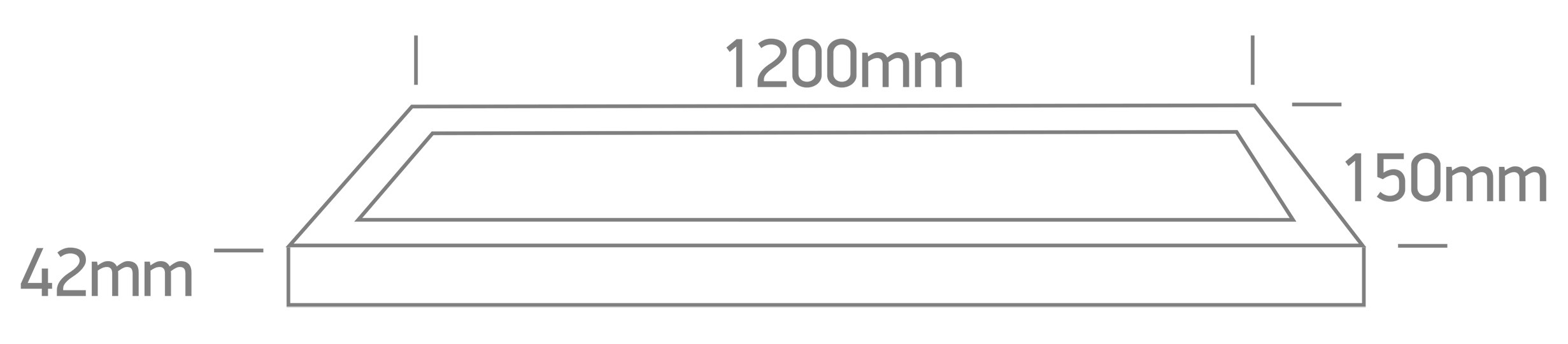

Dimensions
Downloads
Physical Specification
Item Group
14 Plafo
Family
LED Aluminium Panel Range Backlit
Order Code
62140BF/W/C
Colour
White
Material
Aluminium + Steel
Shape
Rectangular
Length
1200mm
Width
150mm
Height
42mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
800mA
Voltage
36V
Power (Watts)
28.8W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
20W-32W
Power Factor
0,9
Constant Current
Yes
800mA
25V-40V
IP Rating
IP20
Dimmable
No
Illumination Data
Colour Temperature
4000K
Lumen Output
3000lm
Light Efficiency
100lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
1.975kg
Pcs/Carton
4
Barcode
5291889077282
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
50000hours
Wee Directive
Yes
Year in which the CE mark was affixed
23
