14 Plafo > UGR19 Backlit CCT V
62140BRU/W/V
30x120cm adjustable CCT surface mounted backlit LED panel with microprismatic diffuser.
Uniform lighting, ideal for commercial applications.
Complete with 1000mA driver.
Complies with standard EN60598-1 and any other specific standards.
Uniform lighting, ideal for commercial applications.
Complete with 1000mA driver.
Complies with standard EN60598-1 and any other specific standards.

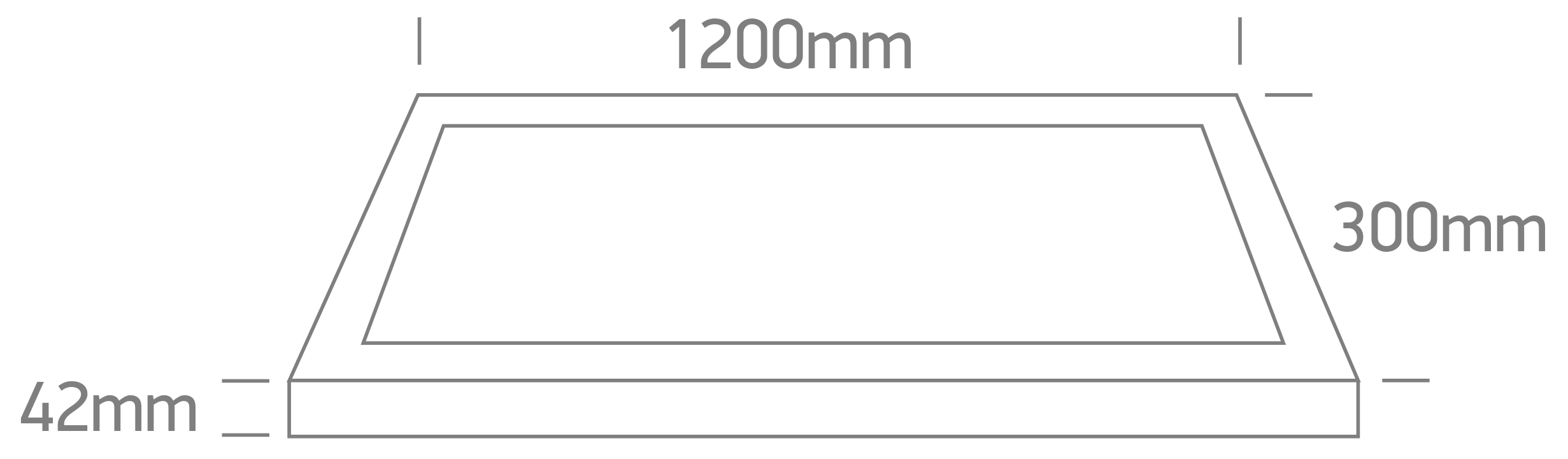

Dimensions
Downloads
Physical Specification
Item Group
14 Plafo
Family
UGR19 Backlit CCT V
Order Code
62140BRU/W/V
Colour
White
Material
Aluminium + Steel
Shape
Rectangular
Length
1200mm
Width
300mm
Height
42mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
40W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1000mA
Voltage
38V
Power (Watts)
38W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
25W-38W
Constant Current
Yes
1000mA
25V-38V
IP Rating
IP20
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K-4000K-5700K
Lumen Output
3600lm-4000lm-3800lm
Light Efficiency
90lm/W - 100lm/W - 95Lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
2.950kg
Pcs/Carton
4
Barcode
5291889077183
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
50000hours
Wee Directive
Yes
Year in which the CE mark was affixed
23
