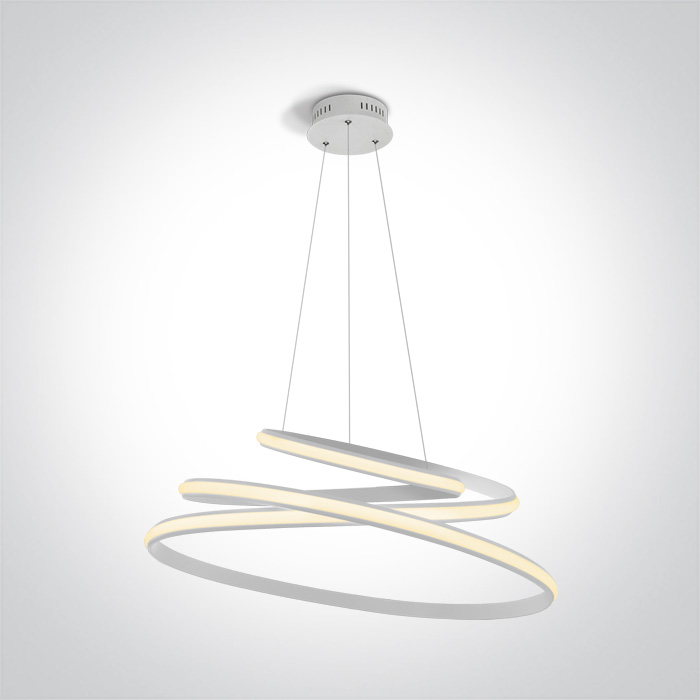

16 Decorative > LED Pendant Rings
63046A/W
45W LED Pendant , IP20 suitable for residential and commercial application .
Complete with 24V driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 24V driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
16 Decorative
Family
LED Pendant Rings
Order Code
63046A/W
Colour
White
Material
Aluminium + Steel
Shape
Circular
Diameter
650mm
Suspended Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
45W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
45W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
50W
Power Factor
0,9
Constant Voltage
Yes
24 V
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
2700lm
Light Efficiency
60lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
4.800kg
Pcs/Carton
1
Barcode
5291889056553
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
