16 Decorative > LED Pendant Rings
63144A/BS/W

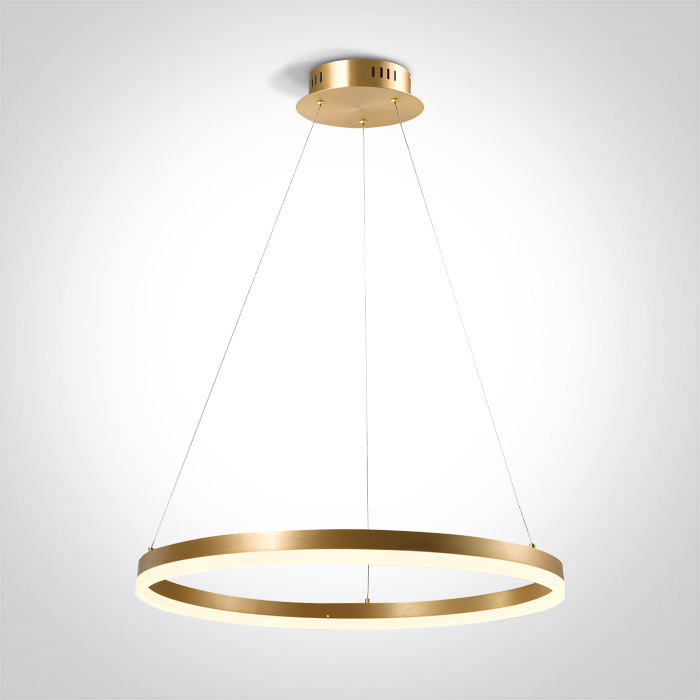

40W LED Pendant, IP20 suitable for residential and commercial application.
Complete with 650mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 650mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
16 Decorative
Family
LED Pendant Rings
Order Code
63144A/BS/W
Colour
Brass
Material
Aluminium + Steel
Diffuser Material
Acrylic
Shape
Circular
Height
1500mm
Diameter
600mm
Suspended Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
40W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
650mA
Voltage
54V
Power (Watts)
35,1W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
29,9-40,3W
Power Factor
0,9
Constant Current
Yes
650mA
46-62V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
4350lm
Light Efficiency
108,75lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
3.300kg
Pcs/Carton
1
Barcode
5291889075912
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
