16 Decorative > LED Pendant Rings
63144B/B/W

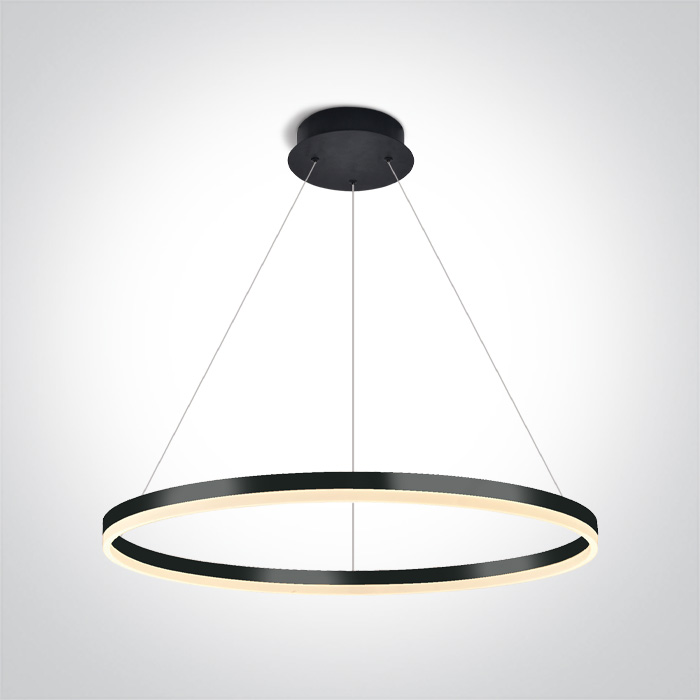

60W LED Pendant, IP20 suitable for residential and commercial application.
Complete with 1050mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 1050mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
16 Decorative
Family
LED Pendant Rings
Order Code
63144B/B/W
Colour
Black
Material
Aluminium + Steel
Diffuser Material
Acrylic
Shape
Circular
Height
1500mm
Diameter
800mm
Suspended Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
60W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
1050mA
Voltage
56V
Power (Watts)
58,8W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
36,75-60,9W
Power Factor
0,9
Constant Current
Yes
1050mA
35-58V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
6800lm
Light Efficiency
113,33lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
4.900kg
Pcs/Carton
1
Barcode
5291889075936
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
