09 Track Lights > High Power Linear Track Light

65168T/B/W

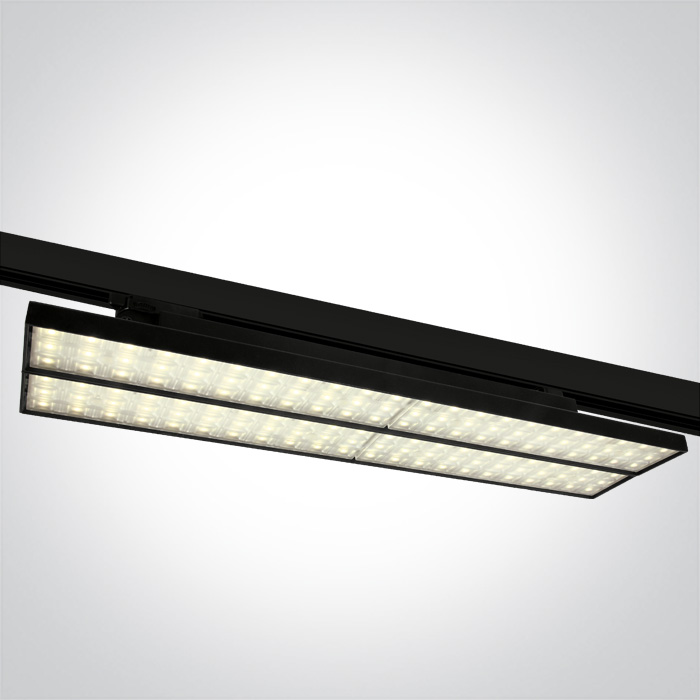

LED Linear adjustable track light, high lumen output ideal for shops and showrooms.

Complete with 1400mA driver.

Complies with standard EN60598-1 and any other specific standards.
Indoor
Ceiling
IP
CRI
Adjustable
Beam Angle
CE
Dimensions
Downloads

Physical Specification

+
Item Group
09 Track Lights
Family
High Power Linear Track Light
Order Code
65168T/B/W
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
585mm
Width
138mm
Height
60mm
Track mounted
Yes
Indoor
Yes
Adjustable
1 Direction

Electrical Characteristics

+
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
50W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
1400mA
Voltage
35V
Power (Watts)
49W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Hongli
LED Number
132
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
37,8-56W
Power Factor
0,9
Constant Current
Yes
1400mA
27-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector

Illumination Data

+
Colour Temperature
3000K
Lumen Output
6250lm
Light Efficiency
125lm/W
CRI
80
Illumination Diagram

Packing Info

+
Box Weight
2.050kg
Pcs/Carton
6
Barcode
5291889073086
HS Code
9405413990

Energy Label

+

Certification & Warranty

+
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
