09 Track Lights > The COB Dark Light Range
65620AT/W/W
20W COB LED track spot with, ideal for
shops and showrooms.
Supplied with electronic high frequency control driver as standard.
Complies with standard EN60598-1 and any other specific standards.
Supplied with electronic high frequency control driver as standard.
Complies with standard EN60598-1 and any other specific standards.

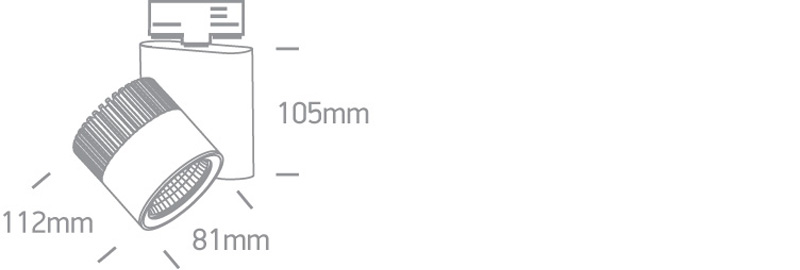

Dimensions
Downloads
Physical Specification
Item Group
09 Track Lights
Family
The COB Dark Light Range
Order Code
65620AT/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
112mm
Diameter
81mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
38V
Safety Class
Power (Watts)
19W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Sanan
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
8-12,5W
Power Factor
0,5
Constant Current
Yes
500mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
1500lm
Light Efficiency
75lm/W
CRI
80
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
13cm
Box Width
10cm
Box Height
17,5cm
Box Weight
0.830kg
Pcs/Carton
10
Barcode
5291889048169
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
30000hours
Wee Directive
Yes
Year in which the CE mark was affixed
13
