17 Hotel & Bedroom > Reading Spots

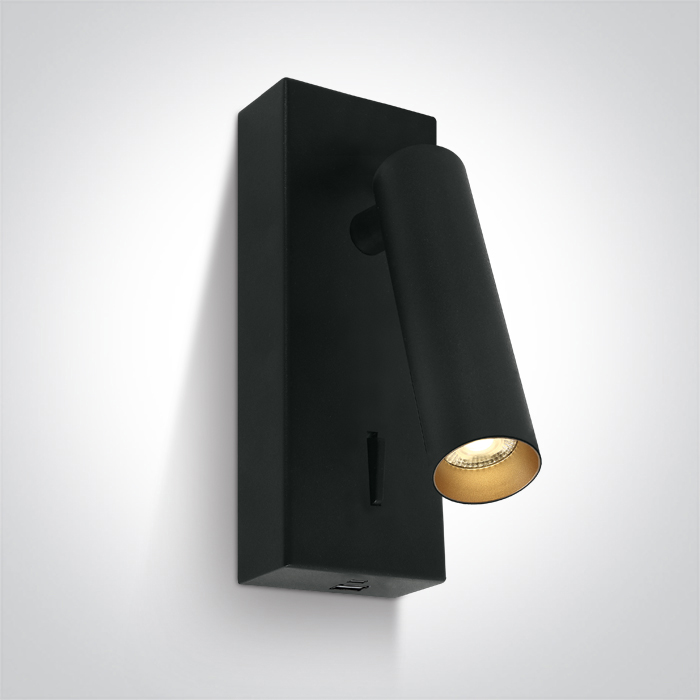

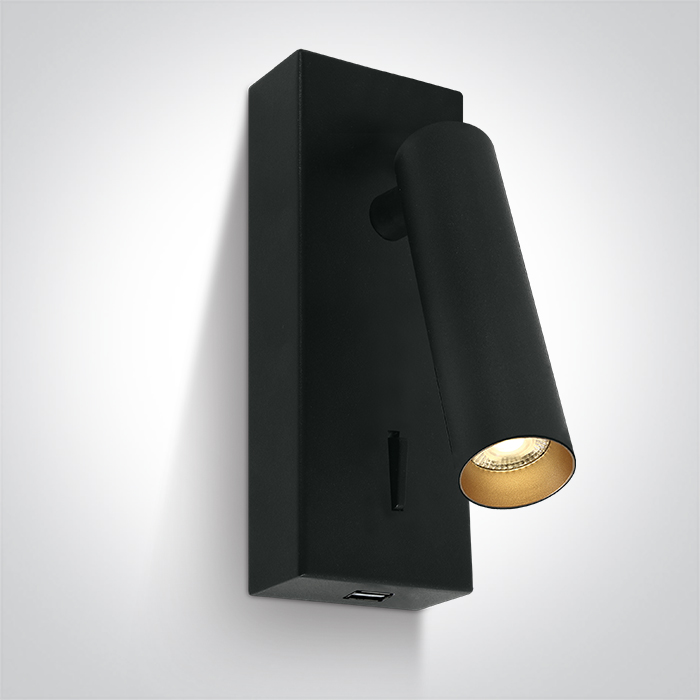

65746A/B/W
3W COB LED bedside adjustable fitting with USB type A & USB type C charging sockets and switch, ideal for room hotel installation, IP20.

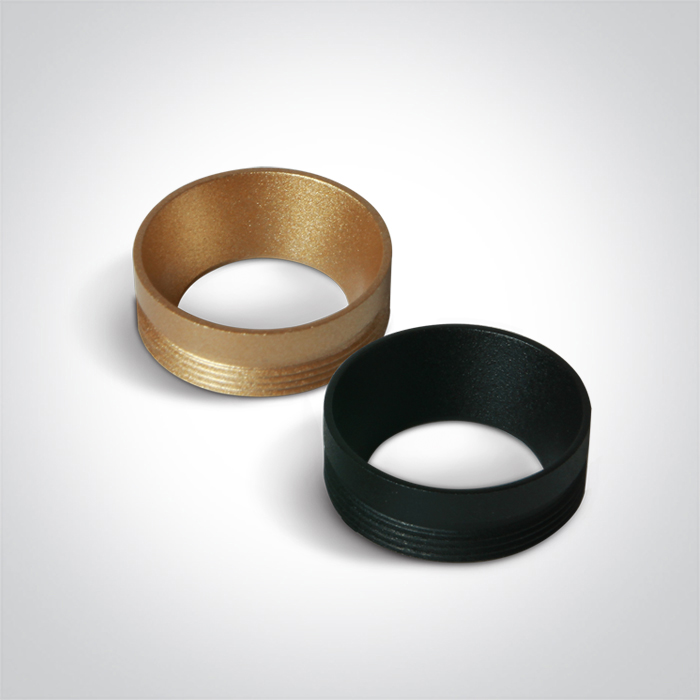

Complete with driver. Complete with black & brass reflectors.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver. Complete with black & brass reflectors.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
17 Hotel & Bedroom
Family
Reading Spots
Order Code
65746A/B/W
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
58mm
Width
25mm
Height
166mm
Surface Wall
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
4V
Safety Class
Power (Watts)
2,8W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Samsung
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
1,75-2,8W
Power Factor
0,5
Constant Current
Yes
700mA
2,5-4V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
150lm
Light Efficiency
50lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Packing Info
Box Weight
0.475kg
Pcs/Carton
24
Barcode
5291889062615
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
