13 Wall & Ceiling LED > COB Outdoor Ceiling Cylinders

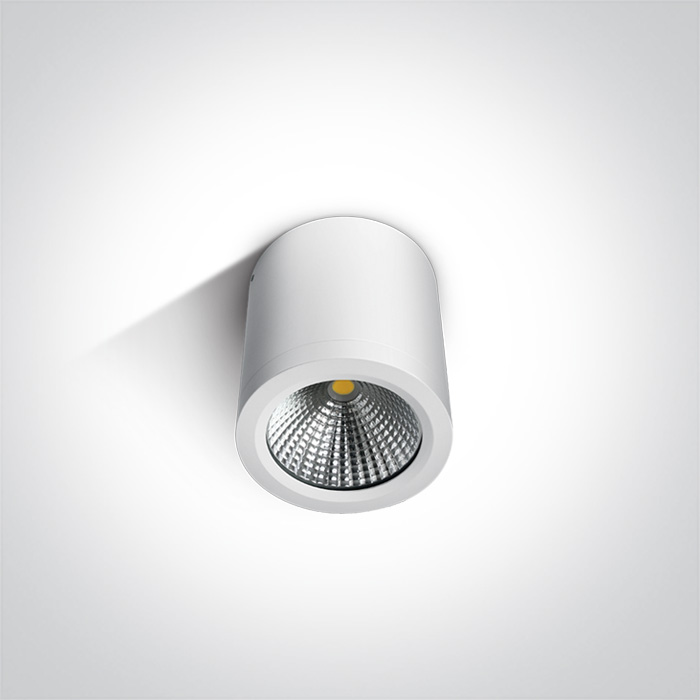

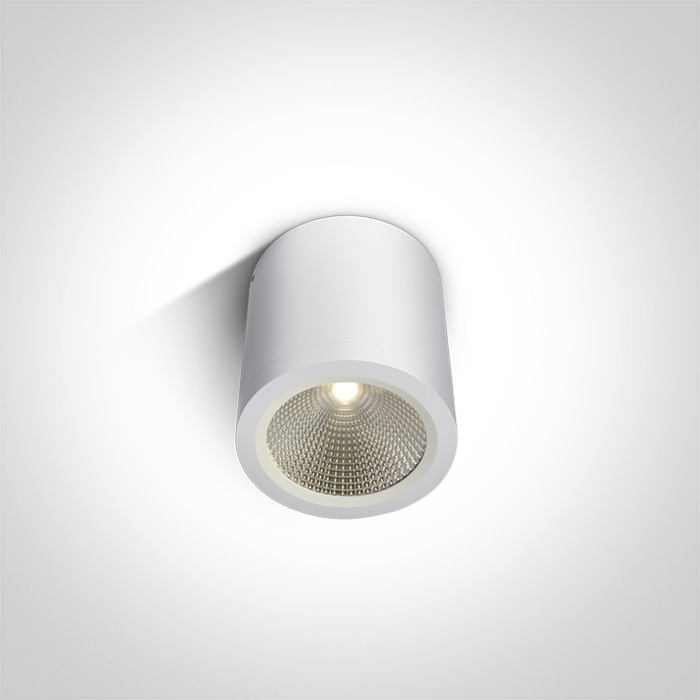

67380/W/W
10W COB LED cylinder, IP54, suitable for indoor and outdoor
installation.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
COB Outdoor Ceiling Cylinders
Order Code
67380/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
100mm
Diameter
90mm
Surface Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
250mA
Voltage
38V
Power (Watts)
9,5W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
LED Brand
Citizen
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
7.5-10W
Power Factor
0,9
Constant Current
Yes
250mA
30-40V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
45°C
Operating Temp
70°C
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
700lm
Light Efficiency
70lm/W
CRI
80
Beam Angle
60°
Illumination Diagram
Packing Info
Box Length
12cm
Box Width
12cm
Box Height
13cm
Box Weight
0.550kg
Pcs/Carton
24
Barcode
5291889044970
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
