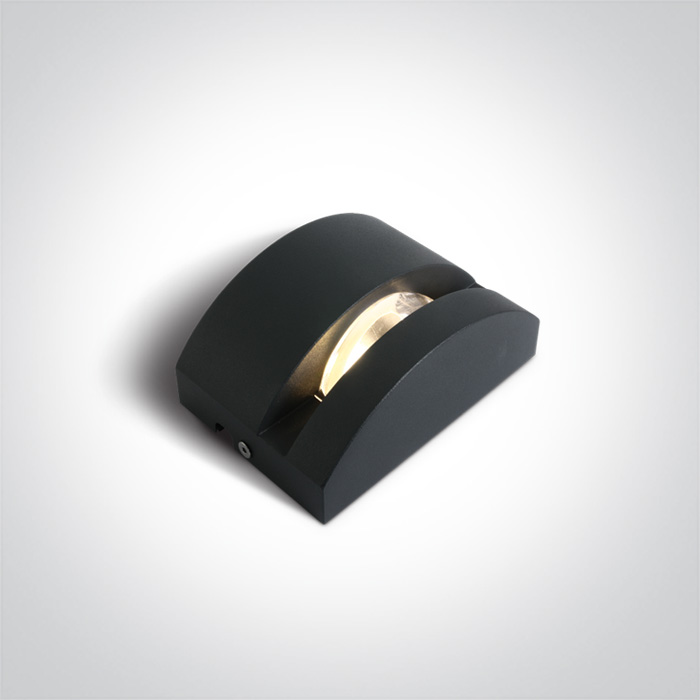

13 Wall & Ceiling LED > Window Frame Illumination
67454/AN/W

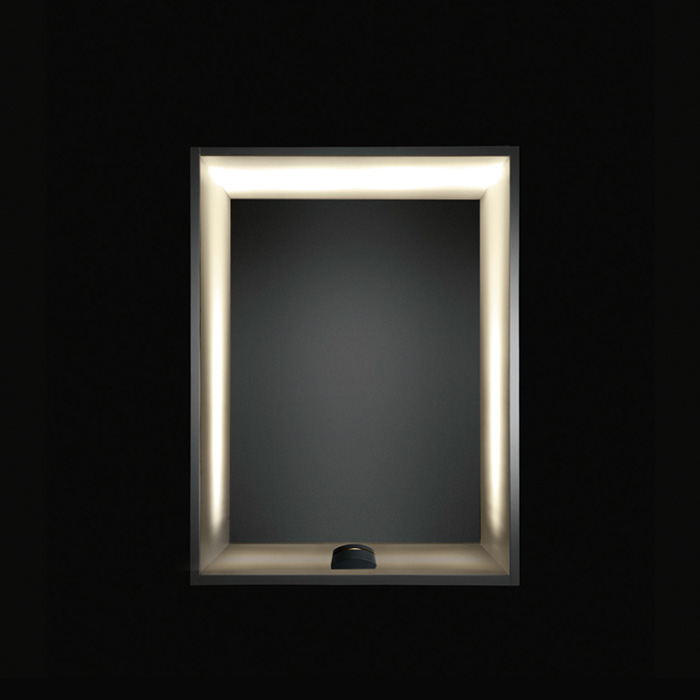

6W LED for window frame illumination,IP65.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

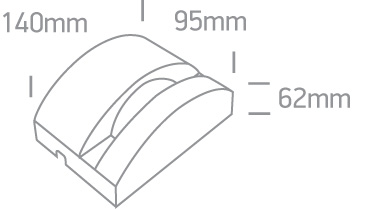

Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
Window Frame Illumination
Order Code
67454/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
140mm
Width
95mm
Height
62mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
6W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
11V
Power (Watts)
5,5W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3-6W
Power Factor
0,5
Constant Current
Yes
500mA
6-12V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
330lm
Light Efficiency
55lm/W
CRI
80

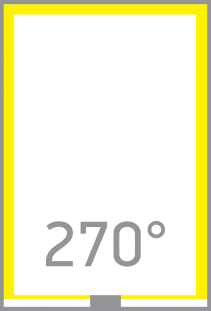

Beam Angle
270°
Illumination Diagram
Packing Info
Box Length
14,5cm
Box Width
10cm
Box Height
7,5cm
Box Weight
0.772kg
Pcs/Carton
18
Barcode
5291889058199
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
