13 Wall & Ceiling LED > The Backlight Wall Range Aluminium

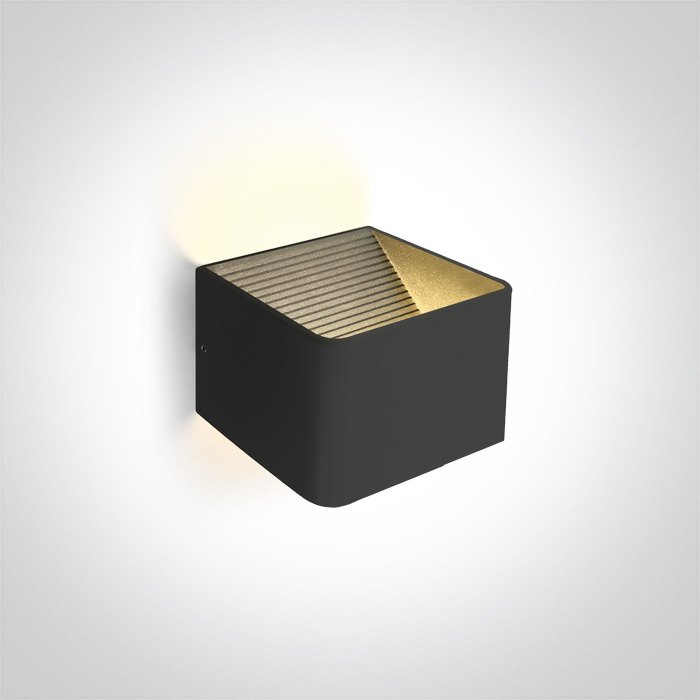

67466A/B/W
6W LED wall surface light IP20.
Complete 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
![Indoor](Assets/img/dropdowns/indoor_outdoor/INDOOR.png)
![Wall](Assets/img/dropdowns/mounting_type/WALL.png)
![IP](Assets/img/dropdowns/ip/1.png)
![CRI](Assets/img/dropdowns/cri/80.png)
![Beam Angle](Assets/img/dropdowns/beam_angle/16.png)
![CE](Assets/img/dropdowns/ce/CE.png)
Dimensions
![](/Assets/materials/files/diagrams/67466A-DIAGRAM.jpg)
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
The Backlight Wall Range Aluminium
Order Code
67466A/B/W
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
100mm
Width
100mm
Height
80mm
Surface Wall
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
![](Assets/img/dropdowns/class/CLASS1.png)
Power (Watts)
6W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
![](Assets/img/dropdowns/f_mark/FMARK1.png)
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
18V
Safety Class
![](Assets/img/dropdowns/class/CLASS3.png)
Power (Watts)
5,4W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Edison
F Mark
![](Assets/img/dropdowns/f_mark/FMARK1.png)
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3,6-6W
Power Factor
0,5
Constant Current
Yes
300mA
12-20V
IP Rating
IP20
Safety Class
![](Assets/img/dropdowns/class/CLASS2.png)
Ambient Temp
0
Operating Temp
0
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
400lm
Light Efficiency
66,67lm/W
CRI
80
Illumination Diagram
![](Assets/img/dropdowns/beam_angle/16.png)
Packing Info
Box Weight
0.541kg
Pcs/Carton
12
Barcode
5291889062813
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
