20 Garden & Underwater > LED Garden Path Lights Die Cast
.jpg)
67470/B/W

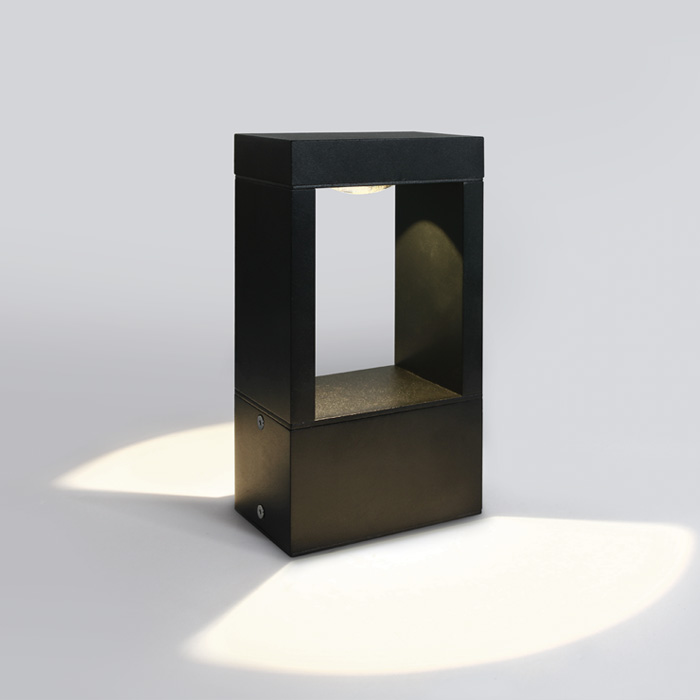

10W LED Bollard, IP65 for Garden illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

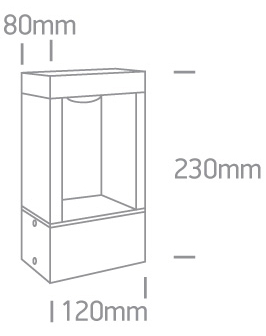

Dimensions
Downloads
Physical Specification
Item Group
20 Garden & Underwater
Family
LED Garden Path Lights Die Cast
Order Code
67470/B/W
Colour
Black
Material
Die Cast
Diffuser Material
PC
Shape
Rectangular
Length
120mm
Width
80mm
Height
230mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
No
IK Rating
10
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
250mA
Voltage
38V
Power (Watts)
9,8W
IP Rating
IP65
Light Source
LED built in
LED Brand
Osram
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4,2-6,3W
Power Factor
0,9
Constant Current
Yes
250mA
30-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
500lm
Light Efficiency
50lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
1.333kg
Pcs/Carton
6
Barcode
5291889061700
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
