13 Wall & Ceiling LED > Linear Outdoor Series Simple Sided

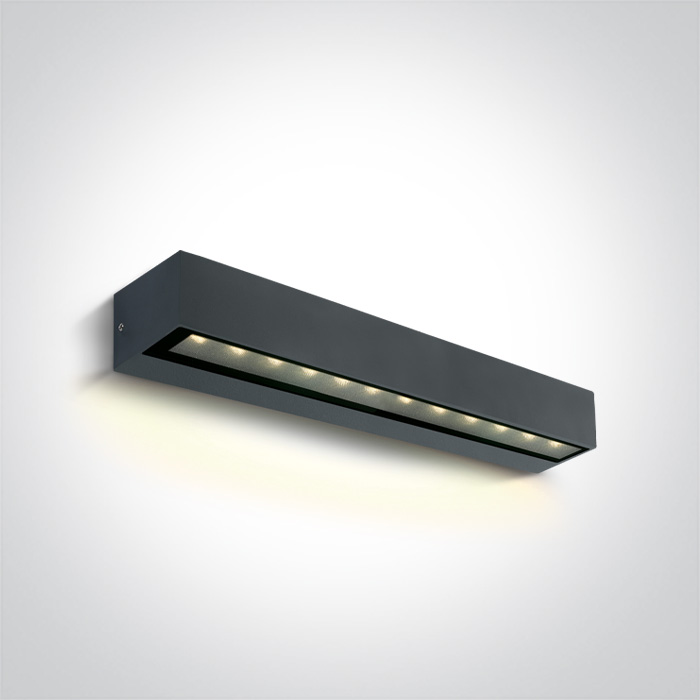

67526A2/AN/W
9W Wall light, IP65.
Complete with 500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
Linear Outdoor Series Simple Sided
Order Code
67526A2/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
380mm
Width
76mm
Height
66mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
7
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
9W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
16V
Power (Watts)
8W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 3030
LED Brand
Osram
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power Factor
0,8
Constant Current
Yes
500mA
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
0
Operating Temp
0
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
540lm
Light Efficiency
60lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
1.900kg
Pcs/Carton
6
Barcode
5291889075820
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
