13 Wall & Ceiling LED > The Backlight Range
67532/B/W

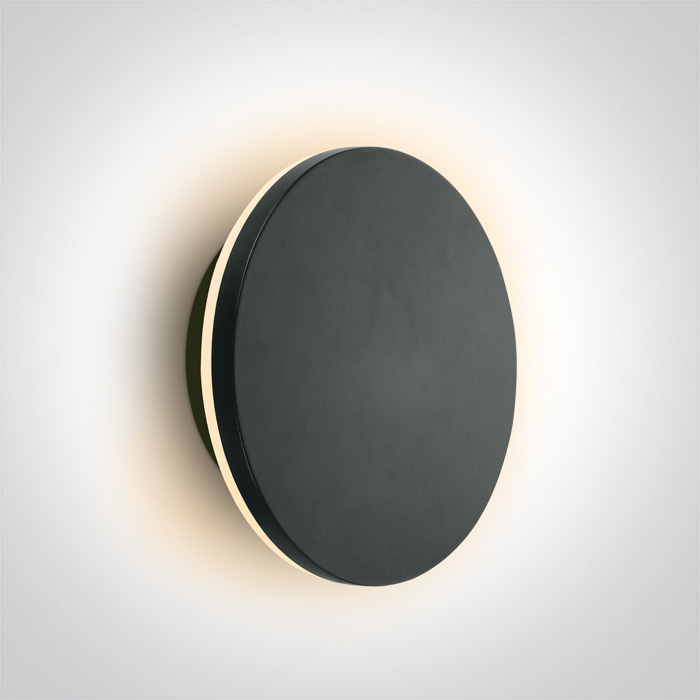

15W LED Wall and Ceiling Dark light.
Complete with 190mA TRIAC dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 190mA TRIAC dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
The Backlight Range
Order Code
67532/B/W
Colour
Black
Material
Aluminium
Diffuser Material
PC
Shape
Circular
Height
55mm
Diameter
250mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
IK Rating
6
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP65
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
F Mark
Fitting
Input Type
Constant Current
Input Current
190mA
Voltage
70V
Power (Watts)
13,3W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Hongli
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
12,35-14,25W
Power Factor
0,9
Constant Current
Yes
Voltage Range
190mA
Output
65-75V
IP Rating
IP65
Safety Class
Dimmable
Yes
Dimmer type
Triac
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
1100lm
Light Efficiency
73,33lm/W
CRI
80
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
1.316kg
Pcs/Carton
12
Barcode
5291889076100
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
