19 Wall Recessed & Inground > Indoor/Outdoor Decorative Wall Recessed Aluminium

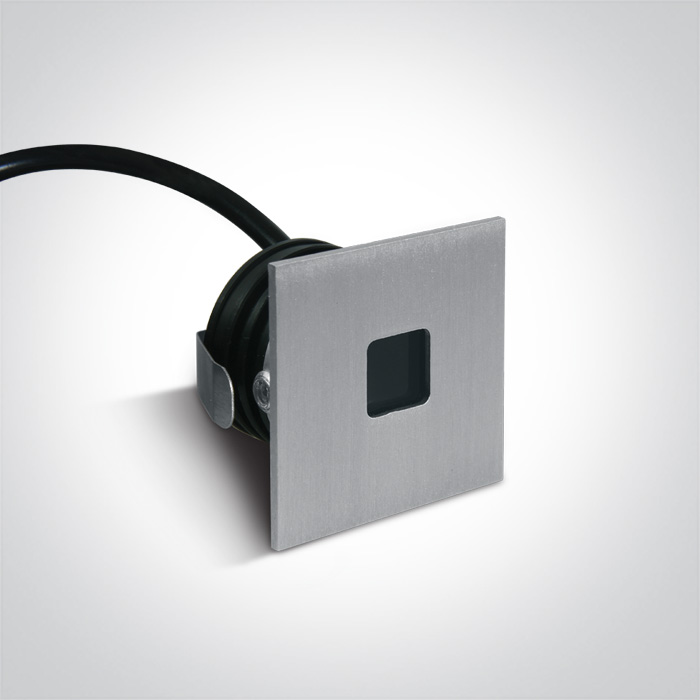

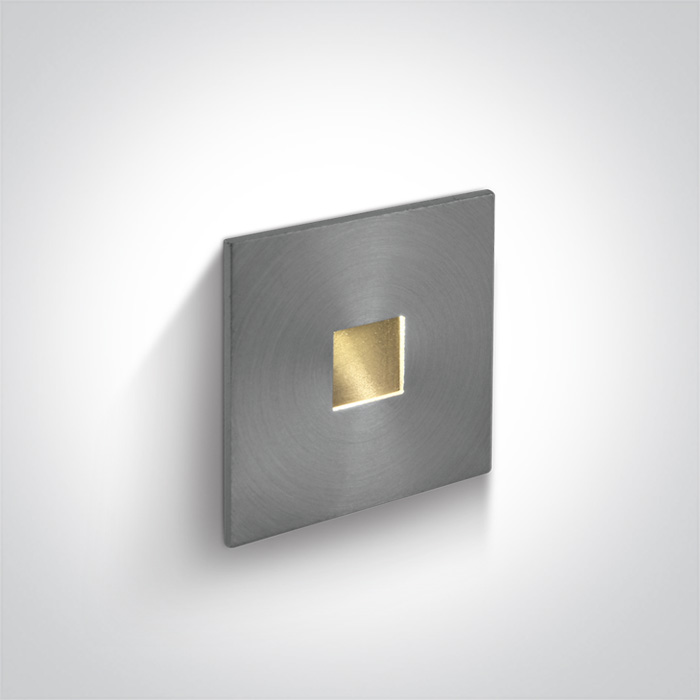

68004A/AL/W
1W 350mA LED wall recessed light, IP54, ideal for both indoor
and outdoor installation.
Requires 350mA driver.
Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver.
Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.

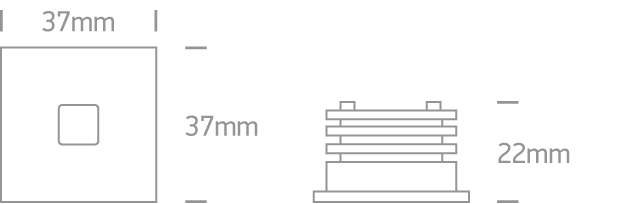

Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
Indoor/Outdoor Decorative Wall Recessed Aluminium
Order Code
68004A/AL/W
Colour
Aluminium
Material
Aluminium
Shape
Rectangular
Length
37mm
Width
37mm
Height
22mm
Cutout Hole Diameter
35mm for Concrete Installation 33mm for Gypsum Installation
Recessed wall
Yes
Depth Required
50mm for Concrete Installation 30mm for Gyprum Installaiton
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Safety Class
Power (Watts)
1W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
LED Brand
Lumileds
Cable Length
200cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
40lm
Light Efficiency
40lm/W
CRI
85
Beam Angle
60°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.121kg
Pcs/Carton
60
Barcode
5291889050315
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
