19 Wall Recessed & Inground > Dark Light Wall Recessed

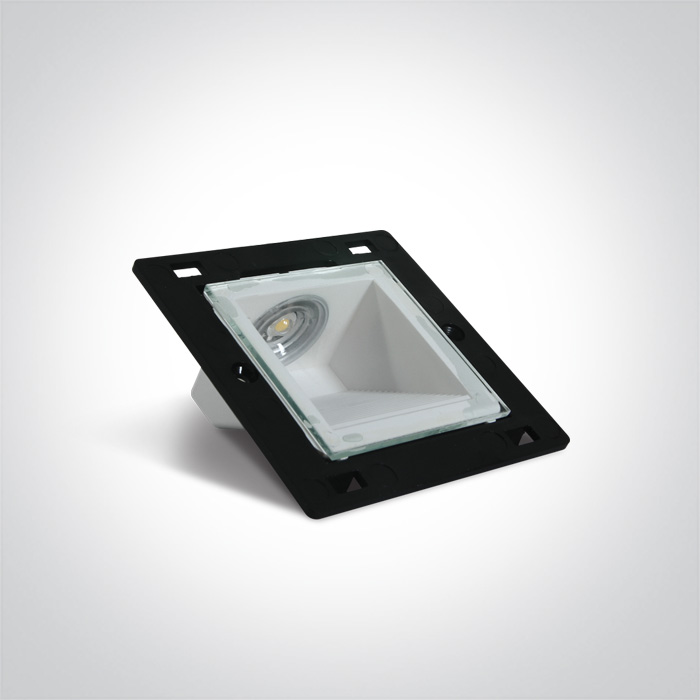

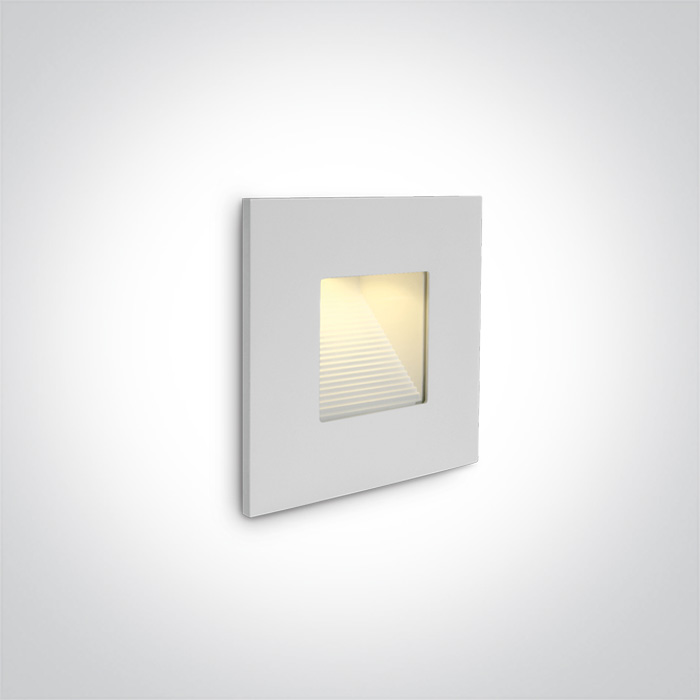

68006N/W
1W, Indoor and outdoor wall recessed LED light, ideal for step and
corridor illumination.
Supplied complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
Dark Light Wall Recessed
Order Code
68006N/W
Material
Die Cast
Shape
Rectangular
Length
85mm
Width
85mm
Height
32mm
Cutout Hole Width
70mm
Cutout Hole Height
70mm
Recessed wall
Yes
Depth Required
60mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
1W
IP Rating
IP44
Light Source
LED built in
Cable Length
12cm
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
2,5V
Safety Class
Power (Watts)
0,9W
IP Rating
IP44
Light Source
LED built in
LED Type
SMD 3535
LED Brand
Bridgelux
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
1-4W
Power Factor
0,5
Constant Current
Yes
350mA
2,8-11V
IP Rating
IP20
Safety Class
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
80lm
Light Efficiency
80lm/W
CRI
90
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.115kg
Pcs/Carton
20
Barcode
5291889062868
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
