19 Wall Recessed & Inground > Indoor/Outdoor Dark Light Wall Recessed

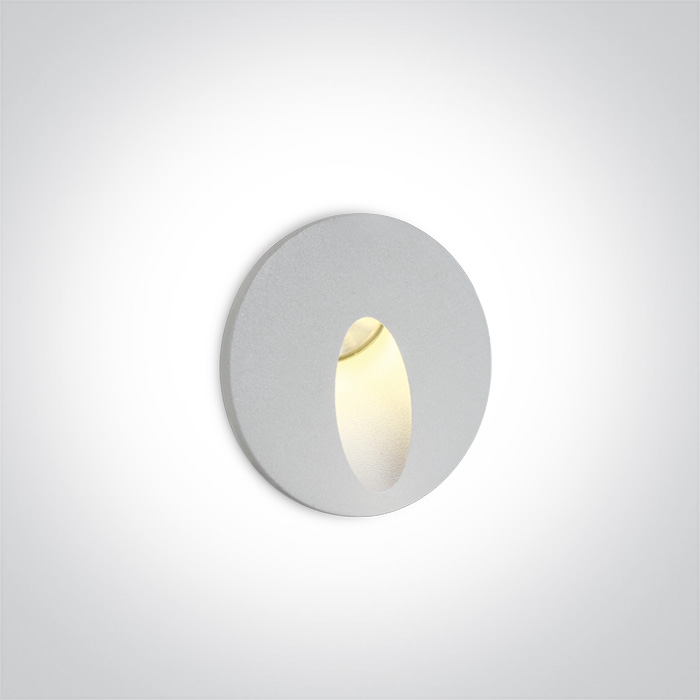

68030/W/W
3W LED recessed wall light, IP54, ideal for, indoor and outdoor,
corridors and stairs illumination.
Complete 700mA driver.

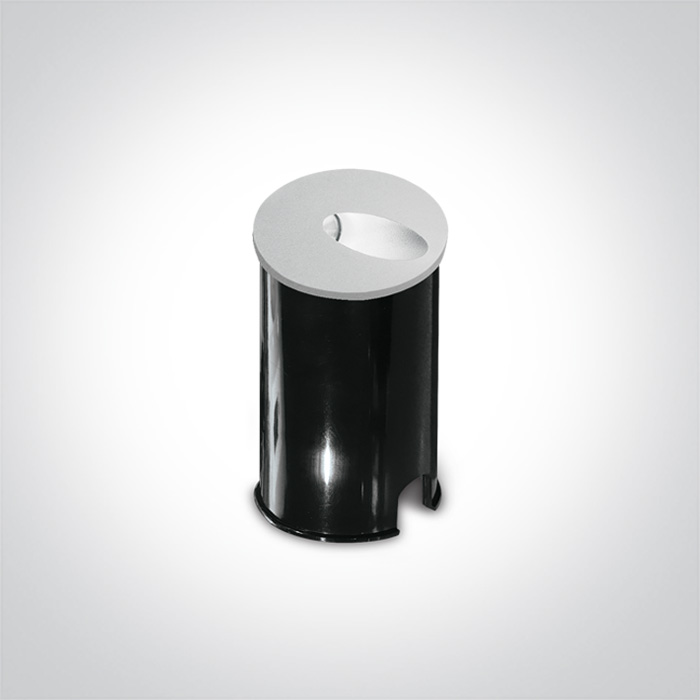

Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.
Complete 700mA driver.
Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.

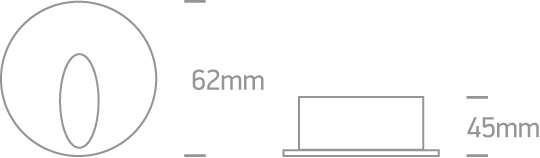

Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
Indoor/Outdoor Dark Light Wall Recessed
Order Code
68030/W/W
Colour
White
Material
Aluminium
Diffuser Material
Glass
Shape
Circular
Height
45mm
Diameter
62mm
Cutout Hole Diameter
52mm
Recessed wall
Yes
Depth Required
110mm Concrete 50mm Gypsum
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
4V
Safety Class
Power (Watts)
2,8W
IP Rating
IP54
Light Source
LED built in
LED Brand
Cree
F Mark
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
1,89-3,15W
Power Factor
0,5
Constant Current
Yes
700mA
2,7-4,5V
IP Rating
IP20
Safety Class
Ambient Temp
0
Operating Temp
0
Illumination Data
Colour Temperature
3000K
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
11cm
Box Width
7,5cm
Box Height
7,5cm
Box Weight
0.353kg
Pcs/Carton
30
Barcode
5291889048695
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
