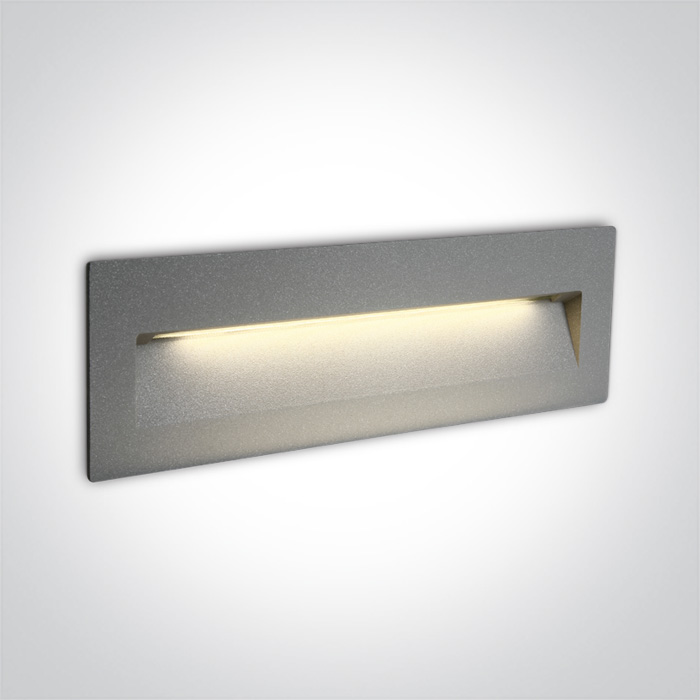

19 Wall Recessed & Inground > Outdoor Dark Light Wall Recessed Die cast
68068C/G/W
7W LED wall recessed light, IP65, ideal for both indoor
and outdoor installation.
Complete 350mA driver.
Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.
Complete 350mA driver.
Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
Outdoor Dark Light Wall Recessed Die cast
Order Code
68068C/G/W
Colour
Grey
Material
Die Cast
Shape
Rectangular
Length
225mm
Width
75mm
Height
55mm
Cutout Hole Width
220mm
Cutout Hole Height
70mm
Recessed wall
Yes
Depth Required
80mm
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
6
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
7W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
17V
Power (Watts)
5,95W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Edison
LED Number
30
F Mark
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
2-6W
Power Factor
0,5
Constant Current
Yes
350mA
6-18V
IP Rating
IP20
Safety Class
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
550lm
Light Efficiency
91,67lm/W
CRI
80
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
9cm
Box Width
8cm
Box Height
23,5cm
Box Weight
0.791kg
Pcs/Carton
12
Barcode
5291889049579
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
